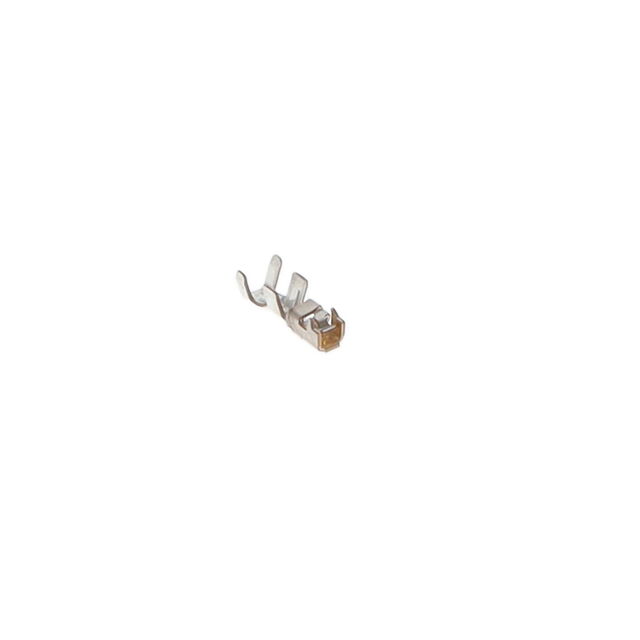

JN-24S-C1B-B1-10000
ActiveJAE Electronics
AWG#24-22, SOCKET CONTACT FOR 2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JN-24S-C1B-B1-10000 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
JN-24S-C Series
Socket Contact Gold 22-26 AWG Crimp
