11011-R

Active

Keystone Electronics

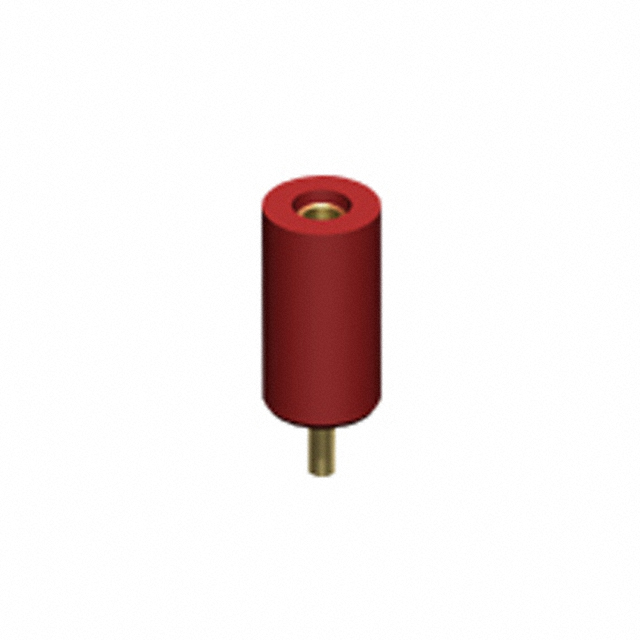

PC TEST POINT JACK RED

Search across all available documentation for this part.

Active

Keystone Electronics

PC TEST POINT JACK RED

Technical Specifications

Parameters and characteristics for this part

Specification	11011-R

Color	Red
Height [z]	10.92 mm
Height [z]	0.43 "
Material - Body	Beryllium Copper
Material - Insulation	Polytetrafluoroethylene (PTFE)
Mounting Type	Through Hole
Plating	Gold
Size / Dimension [diameter]	0.218 Dia
Size / Dimension [diameter]	5.54 mm
Type	PC Test Point Jack

PC TEST POINT JACK RED

Part	Height [z]	Height [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Material - Insulation	Mounting Type	Type	Material - Body	Plating	Color
Keystone Electronics 11011-R	10.92 mm	0.43 "	0.218 Dia	5.54 mm	Polytetrafluoroethylene (PTFE)	Through Hole	PC Test Point Jack	Beryllium Copper	Gold	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red PC Test Point Jack Beryllium Copper Gold Plating Through Hole Mounting Type
