H24B-TS-RO-M32
ActiveTE Connectivity AMP Connectors

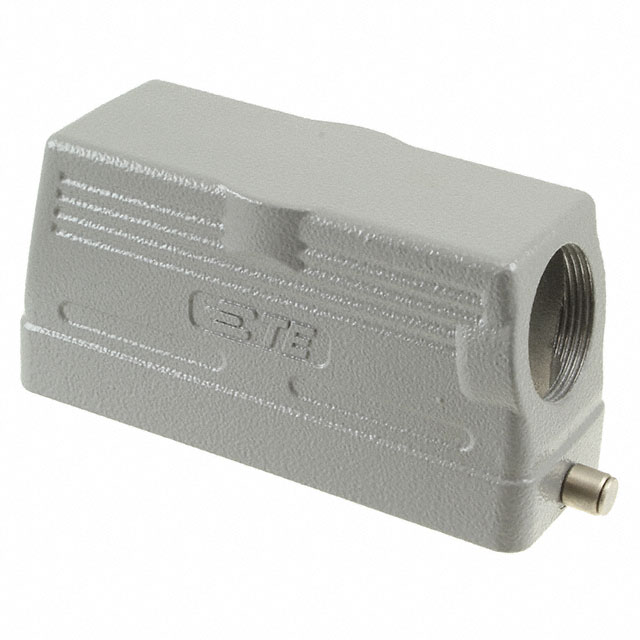

CONN HOOD SIDE ENTRY SZ24B M32
Deep-Dive with AI
Search across all available documentation for this part.
H24B-TS-RO-M32
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ24B M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H24B-TS-RO-M32 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 24 B |
| Size / Dimension [x] | 4.724 " |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 60 mm |
| Size / Dimension [z] | 2.362 " |
| Style | Side Entry |
| Thread Size | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.02 | |
| 16 | $ 9.06 | |||
| 32 | $ 8.82 | |||
| 56 | $ 8.49 | |||
| 104 | $ 8.44 | |||
H24B-TS Series
CONN HOOD SIDE ENTRY SZ24B M32
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Thread Size | Lock Location | Ingress Protection | Housing Color | Style | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Size | Housing Finish | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors H24B-TS-RO-M32 | 60 mm | 1.693 in | 43 mm | 2.362 " | 4.724 " | 120 mm | M32 | Locking Clip (1) on Base Bottom | IP65 - Dust Tight, Water Resistant | Gray | Side Entry | Hood | 125 °C | -40 °C | 24 B | Powder Coated | Aluminum Alloy, Die Cast |
Description
General part information
H24B-TS Series
Hood Connector Side Entry M32 24B IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
