2115-2-00-50-00-00-07-0
ActiveMill-Max Manufacturing Corp.

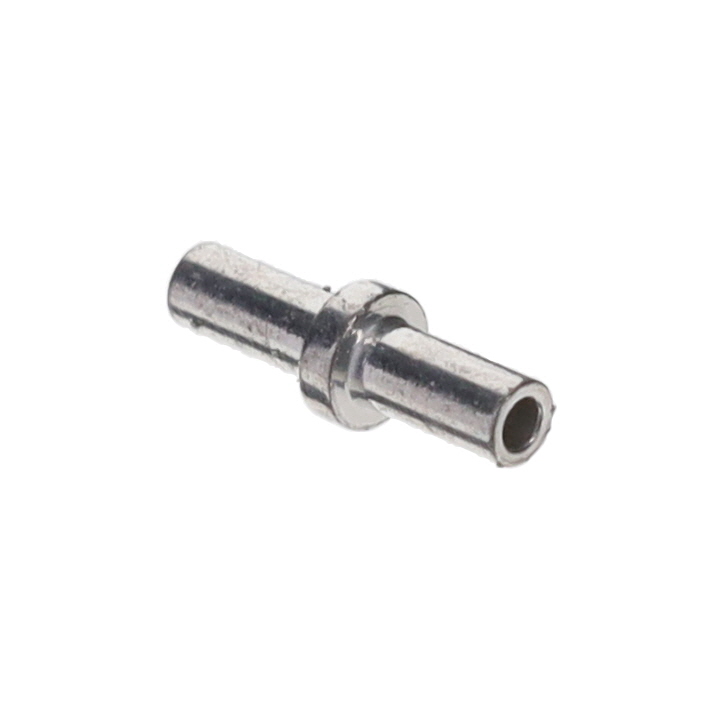

CONN PC PIN CIRC .039DIA TINLEAD
Deep-Dive with AI
Search across all available documentation for this part.
2115-2-00-50-00-00-07-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .039DIA TINLEAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2115-2-00-50-00-00-07-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.062 in |
| Flange Diameter [diameter] | 1.57 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 2.03 mm |
| Length - Above Flange [x] | 0.08 in |
| Length - Below Flange [x] | 0.08 in |
| Length - Below Flange [x] | 2.03 mm |
| Length - Overall | 4.57 mm |
| Length - Overall | 0.18 " |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.99 mm |
| Pin Size - Above Flange [diameter] | 0.039 in |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.79 | |
| 10 | $ 0.67 | |||
| 100 | $ 0.60 | |||
| 1000 | $ 0.44 | |||
| 5000 | $ 0.38 | |||
| 10000 | $ 0.36 | |||
Description
General part information
2115-2 Series
PC Pin Terminal Connector Through Hole Tin-Lead 0.039" (0.99mm) Dia
