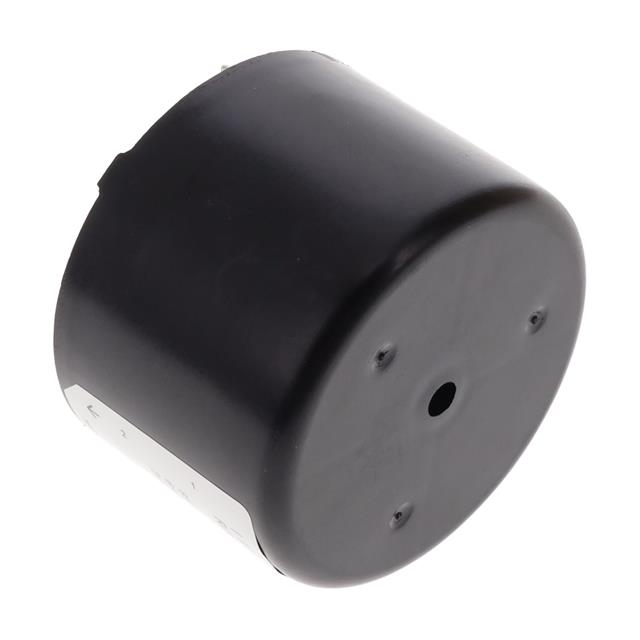

RD5132-6-5M0
ActiveTE Connectivity Raychem Cable Protection
CMC 5MH 6A 3LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RD5132-6-5M0
ActiveTE Connectivity Raychem Cable Protection
CMC 5MH 6A 3LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RD5132-6-5M0 |
|---|---|
| Current Rating (Max) | 6 A |
| DC Resistance (DCR) (Max) | 38 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.398 in |
| Height (Max) | 35.5 mm |
| Inductance @ Frequency | 5 mH |
| Mounting Type | Through Hole |
| Number of Lines | 3 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [x] | 1.969 in |
| Size / Dimension [y] | 1.969 in |
| Size / Dimension [y] | 50 mm |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 850 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.68 | |
| 10 | $ 14.48 | |||
| 25 | $ 13.12 | |||
Description
General part information
RD5132 Series
5 mH @ 400 Hz 3 Line Common Mode Choke Through Hole 6A (Typ) DCR 38mOhm (Typ)
