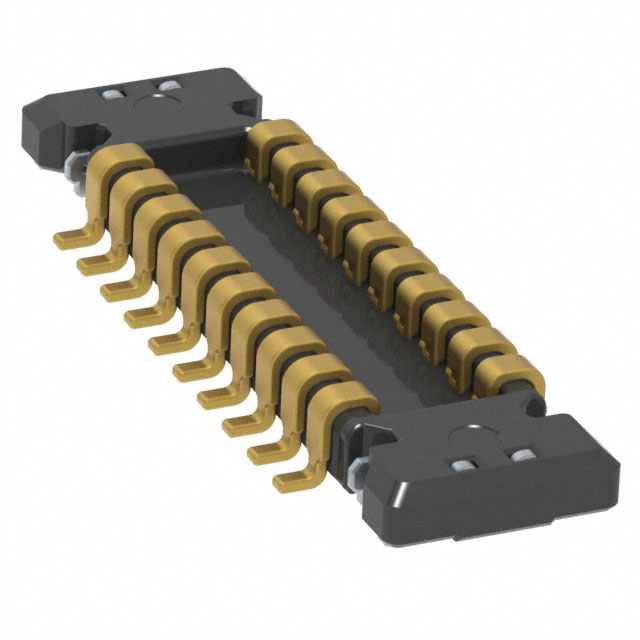

AXG820044A
ObsoletePanasonic Electric Works
CONN PLUG 20POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AXG820044A
ObsoletePanasonic Electric Works
CONN PLUG 20POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AXG820044A |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.46 mm |
| Height Above Board | 0.018 in |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 2.62 | |
| 10 | $ 2.28 | |||
| 25 | $ 2.18 | |||
| 50 | $ 2.13 | |||
| 100 | $ 2.04 | |||
| 250 | $ 1.84 | |||
Description
General part information
AXG820 Series
20 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
