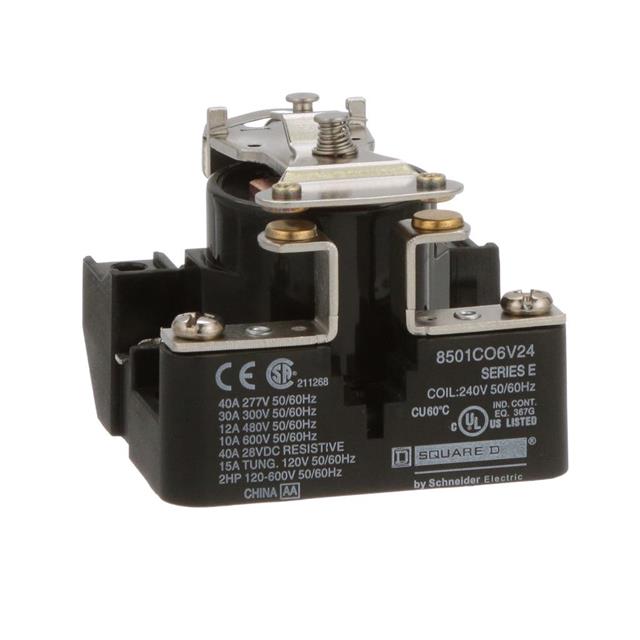

8501CO6V24

Active

SQUARE D BY SCHNEIDER ELECTRIC

POWER RELAY, TYPE C, 2.0 HP, 30A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8501CO6V24

Coil Type	Non Latching
Coil Voltage	240 VAC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	30 A
Mounting Type	Chassis Mount
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Relay Type	General Purpose
Switching Voltage	600 VAC
Termination Style	Screw Terminal

8501CO Series

Part	Coil Type	Coil Voltage	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Rating (Current)	Switching Voltage	Termination Style	Relay Type	Approval Agency
SQUARE D BY SCHNEIDER ELECTRIC 8501CO7V29	Non Latching	480 VAC	DPST-NO (2 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO7V20	Non Latching	120 VAC	DPST-NO (2 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO16V24	Non Latching	240 VAC	DPDT (2 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose	CE CSA UL
SQUARE D BY SCHNEIDER ELECTRIC 8501CO6V36	Non Latching	12 VAC/DC	SPST-NO (1 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO16V20	Non Latching	120 VAC	DPDT (2 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO16V29	Non Latching	480 VAC	DPDT (2 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO7V14	Non Latching	24 VAC	DPST-NO (2 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO6V04	Non Latching	277 VAC	SPST-NO (1 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO15V24	Non Latching	240 VAC	SPDT (1 Form C)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CO6V24	Non Latching	240 VAC	SPST-NO (1 Form A)	50 °C	-30 ░C	Chassis Mount	30 A	600 VAC	Screw Terminal	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 56.34

Description

General part information

8501CO Series

General Purpose Relay SPST-NO (1 Form A) 240VAC Coil Chassis Mount
