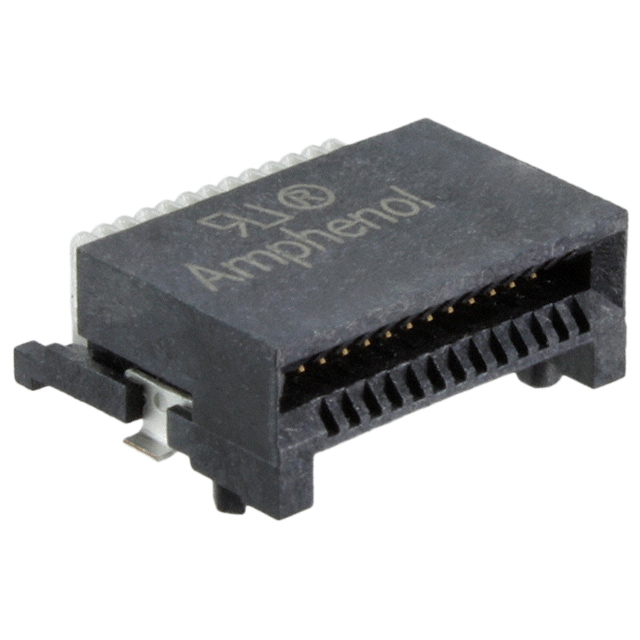

FS1-R26-2001
ObsoleteAmphenol ICC (Commercial Products)
CONN MINI SAS RCP 26P SLD RA SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FS1-R26-2001
ObsoleteAmphenol ICC (Commercial Products)
CONN MINI SAS RCP 26P SLD RA SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FS1-R26-2001 |
|---|---|
| Connector Style | Receptacle |
| Connector Type | SAS, Mini |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Solder Retention, Board Guide |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 26 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.85 | |
| 10 | $ 2.58 | |||
| 25 | $ 2.45 | |||
| 50 | $ 2.39 | |||
| 100 | $ 2.28 | |||
| 250 | $ 1.99 | |||
| Tape & Reel (TR) | 500 | $ 1.94 | ||
Description
General part information
FS1-R26 Series
26 Position SAS, Mini Receptacle Connector Solder Surface Mount, Right Angle
