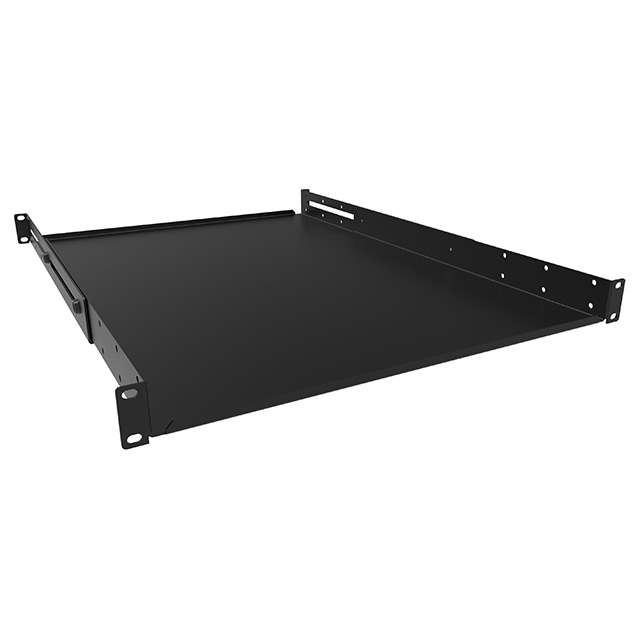

ADSU1825BK
ActiveHammond Manufacturing
SHELF ADJ SOLID 18X25X1.72 BLK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsADS Series Assem Instr
ADSU1825BK
ActiveHammond Manufacturing
SHELF ADJ SOLID 18X25X1.72 BLK
Deep-Dive with AI
DocumentsADS Series Assem Instr
Technical Specifications
Parameters and characteristics for this part
| Specification | ADSU1825BK |
|---|---|
| Color | Black |
| Features | Adjustable |
| For Use With/Related Products | 19" Panel Width Racks |
| Material | Metal, Steel |
| Size / Dimension [x] | 482.6 mm |
| Size / Dimension [x] | 19 " |
| Size / Dimension [y] | 25 " |
| Size / Dimension [y] | 635 mm |
| Size / Dimension [z] | 43.69 mm |
| Size / Dimension [z] | 1.72 in |
| Type | Shelf, Fixed |
| Ventilation | Non-Vented |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 115.82 | |
| 5 | $ 108.10 | |||
| 10 | $ 106.17 | |||
| 25 | $ 104.24 | |||
| 50 | $ 102.70 | |||
Description
General part information
ADSU1825 Series
Metal, Steel Shelf, Fixed 19.000" L x 25.000" W x 1.720" H (482.60mm x 635.00mm x 43.69mm) Black
