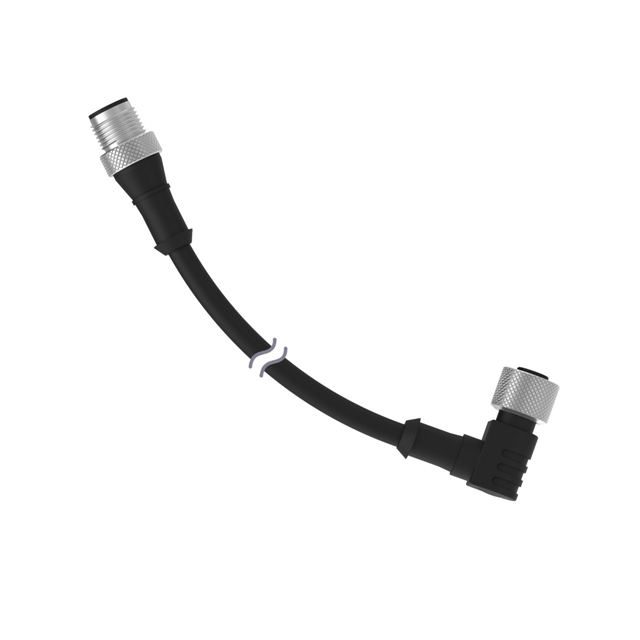

MQDEC-415SR-PUR

Active

BANNER ENGINEERING

CORDSET A-CODE M12 TO A-CODE M12 DOUBLE ENDED

Deep-Dive with AI

Search across all available documentation for this part.

MQDEC-415SR-PUR

Active

BANNER ENGINEERING

CORDSET A-CODE M12 TO A-CODE M12 DOUBLE ENDED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MQDEC-415SR-PUR

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug, Right Angle
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	15 ft
Length [x]	4.57 m
Shielding	Unshielded
Usage	Industrial Environments

MQDEC Series

Part	Ingress Protection	1st Connector Type	Usage	Assembly Configuration	Cable Material	1st Connector Shell Size - Insert	2nd Connector Type	1st Connector Gender	Length	Length	1st Connector Number of Positions Loaded	Shielding	1st Connector Mounting Type	Cable Type	1st Connector Orientation [custom]	Color	1st Connector Number of Positions	2nd Connector Number of Positions Loaded	2nd Connector Shell Size - Insert	2nd Connector Number of Positions	2nd Connector Gender	2nd Connector Mounting Type	2nd Connector Number of Positions Loaded	Length [x]	Length [x]
BANNER ENGINEERING MQDEC2-530	IP67 - Dust Tight Waterproof	Plug	Industrial Environments	Standard	Polyvinyl Chloride (PVC)	M12	Wire Leads	Female Sockets	30 '	9.14 m	All	Shielded	Free Hanging (In-Line)	Round	Keyed	Black	5
BANNER ENGINEERING MQDEC-401SS	IP67 - Dust Tight Waterproof	Receptacle	Industrial Environments	Standard	Polyvinyl Chloride (PVC)	M12	Plug	Male Pins	1 ft	304.8 mm	All	Unshielded	Free Hanging (In-Line)	Round	Keyed	Black	4	4 positions	M12	5	Female Sockets	Free Hanging (In-Line)
BANNER ENGINEERING MQDEC-406SS	IP67 - Dust Tight Waterproof	Receptacle	Industrial Environments	Standard	Polyvinyl Chloride (PVC)	M12	Plug	Male Pins	6 ft	1.83 m	All	Unshielded	Free Hanging (In-Line)	Round	Keyed	Black	4	4 positions	M12	5	Female Sockets	Free Hanging (In-Line)
BANNER ENGINEERING MQDEC2-450RA	IP67 - Dust Tight Waterproof	Plug Right Angle	Industrial Environments	Standard	Polyvinyl Chloride (PVC)	M12	Wire Leads	Female Sockets	50 ft	15.24 m	All	Shielded	Free Hanging (In-Line)	Round	Keyed	Black	4
BANNER ENGINEERING MQDEC-402SS	IP67 - Dust Tight Waterproof	Receptacle	Industrial Environments	Standard	Polyvinyl Chloride (PVC)	M12	Plug	Male Pins			All	Unshielded	Free Hanging (In-Line)	Round	Keyed	Black	4		M12	4	Female Sockets	Free Hanging (In-Line)	All	2 '	609.6 mm
BANNER ENGINEERING MQDEC2-415	IP67 - Dust Tight Waterproof	Plug	Industrial Environments	Standard	Polyvinyl Chloride (PVC)	M12	Wire Leads	Female Sockets			All	Shielded	Free Hanging (In-Line)	Round	Keyed	Black	4							15 ft	4.57 m
BANNER ENGINEERING MQDEC2-515	IP67 - Dust Tight Waterproof	Plug	Industrial Environments	Standard	Polyvinyl Chloride (PVC)	M12	Wire Leads	Female Sockets			All	Shielded	Free Hanging (In-Line)	Round	Keyed	Black	5							15 ft	4.57 m
BANNER ENGINEERING MQDEC-420SS	IP67 - Dust Tight Waterproof	Receptacle	Industrial Environments	Standard	Polyvinyl Chloride (PVC)	M12	Plug	Male Pins	20 ft	6.1 m	All	Unshielded	Free Hanging (In-Line)	Round	Keyed	Black	4	4 positions	M12	5	Female Sockets	Free Hanging (In-Line)
BANNER ENGINEERING MQDEC-415SR-PUR	IP67 - Dust Tight Waterproof	Receptacle	Industrial Environments	Standard	Polyurethane (PUR)	M12	Plug Right Angle	Male Pins			All	Unshielded	Free Hanging (In-Line)	Round	Keyed	Black	4		M12	4	Female Sockets	Free Hanging (In-Line)	All	15 ft	4.57 m
BANNER ENGINEERING MQDEC3-530SS	IP67 - Dust Tight Waterproof	Receptacle	Industrial Environments	Standard	Polyvinyl Chloride (PVC)	M12	Plug	Male Pins	30 '	9.14 m	All	Shielded	Free Hanging (In-Line)	Round	Keyed	Black	5		M12	5	Female Sockets	Free Hanging (In-Line)	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 58.00
Newark	Each	1	$ 59.00

Description

General part information

MQDEC Series

Cable Assembly 15.00' (4.57m)
