OD4015-24LB01A

Active

Orion Fans

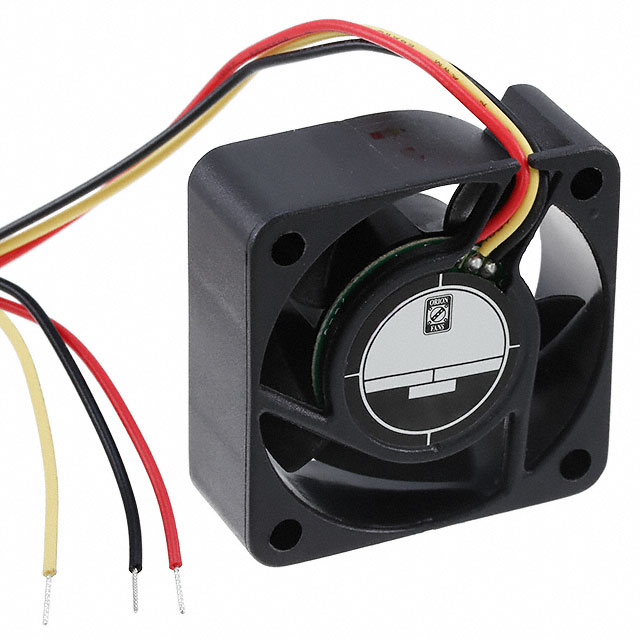

FAN AXIAL 40X15MM 24VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD4015-24LB01A

Air Flow	0.19 m³/min
Air Flow	6.8 CFM
Approval Agency	CE, cURus
Bearing Type	Ball
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	29 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.92 W
RPM	6000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	17 VDC
Weight	24.04 g
Weight	0.053 lb
Width [x]	15 mm

OD4015 Series

Part	Approval Agency	Bearing Type	Weight	Weight	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	Air Flow	Air Flow	Features	Power (Watts)	Termination	Noise	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Fan Type	RPM	Material - Blade	Width [x]	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Lifetime @ Temp.
Orion Fans OD4015-24LB01A	CE cURus	Ball	24.04 g	0.053 lb	60 mA	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.19 m³/min	6.8 CFM	Speed Sensor (Tach)	1.92 W	3 Wire Leads	29 dB(A)	40 mm	Square	40 mm	Tubeaxial	6000 RPM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	15 mm	26.4 VDC	17 VDC	24 VDC	70000 Hrs
Orion Fans OD4015-12LBXC5	CE cURus	Ball								Polybutylene Terephthalate (PBT) Fiberglass Reinforced			PWM Control		3 Wire Leads		40 mm	Square	40 mm	Tubeaxial		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	15 mm			12 VDC
Orion Fans OD4015-24LS	CE cURus	Sleeve								Polybutylene Terephthalate (PBT) Fiberglass Reinforced					2 Wire Leads		40 mm	Square	40 mm	Tubeaxial		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	15 mm			24 VDC
Orion Fans OD4015-12HSS	CE cURus	Sealed Sleeve								Polybutylene Terephthalate (PBT) Fiberglass Reinforced					2 Wire Leads		40 mm	Square	40 mm	Tubeaxial		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	15 mm			12 VDC
Orion Fans OD4015-12MS	CE cURus	Sleeve								Polybutylene Terephthalate (PBT) Fiberglass Reinforced					2 Wire Leads		40 mm	Square	40 mm	Tubeaxial		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	15 mm			12 VDC
Orion Fans OD4015-12LBXC	CE cURus	Ball								Polybutylene Terephthalate (PBT) Fiberglass Reinforced					2 Wire Leads		40 mm	Square	40 mm	Tubeaxial		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	15 mm			12 VDC
Orion Fans OD4015-24LSS01A	CE cURus	Sealed Sleeve								Polybutylene Terephthalate (PBT) Fiberglass Reinforced			Speed Sensor (Tach)		3 Wire Leads		40 mm	Square	40 mm	Tubeaxial		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	15 mm			24 VDC
Orion Fans OD4015-12LBXC10A	CE cURus	Ball								Polybutylene Terephthalate (PBT) Fiberglass Reinforced			PWM Control Speed Sensor (Tach)		4 Wire Leads		40 mm	Square	40 mm	Tubeaxial		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	15 mm			12 VDC
Orion Fans OD4015-12LSS02A	CE cURus	Sealed Sleeve								Polybutylene Terephthalate (PBT) Fiberglass Reinforced			Locked Rotor Sensor		3 Wire Leads		40 mm	Square	40 mm	Tubeaxial		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	15 mm			12 VDC
Orion Fans OD4015-12LB01A	CE cURus	Ball								Polybutylene Terephthalate (PBT) Fiberglass Reinforced			Speed Sensor (Tach)		3 Wire Leads		40 mm	Square	40 mm	Tubeaxial		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	15 mm			12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 9.38

Description

General part information

OD4015 Series

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 6.8 CFM (0.190m³/min) 3 Wire Leads
