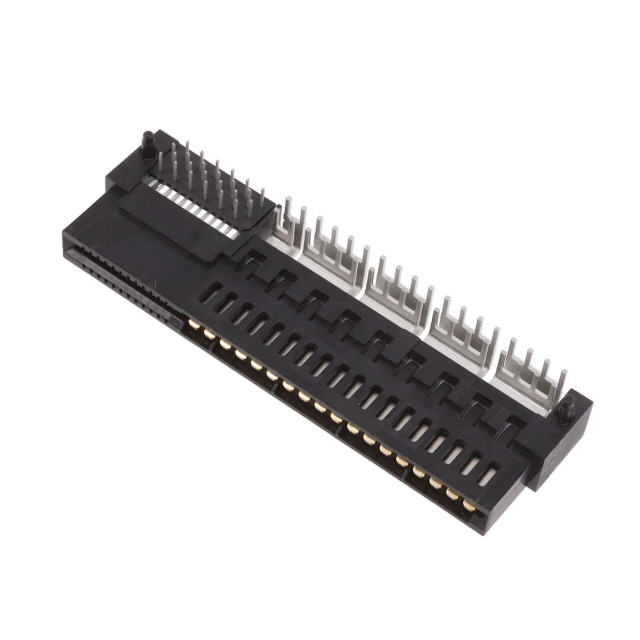

10115859-004LF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FMALE 60POS
Deep-Dive with AI
Search across all available documentation for this part.
10115859-004LF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FMALE 60POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10115859-004LF |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | GXT™, Gold or Gold |
| Contact Material | Copper Alloy |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions [custom] | 60 |
| Number of Positions [custom] | 36 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.92 | |
| 10 | $ 11.47 | |||
| 25 | $ 10.37 | |||
| 40 | $ 9.86 | |||
| 80 | $ 9.16 | |||
| 230 | $ 8.22 | |||
| 440 | $ 7.71 | |||
| 945 | $ 7.17 | |||
Description
General part information
10115859 Series
60 (24 + 36 Power) Position Female Connector Non Specified - Dual Edge Gold or Gold, GXT™ Black
