1.30.249.001/0000

Active

RAFI USA

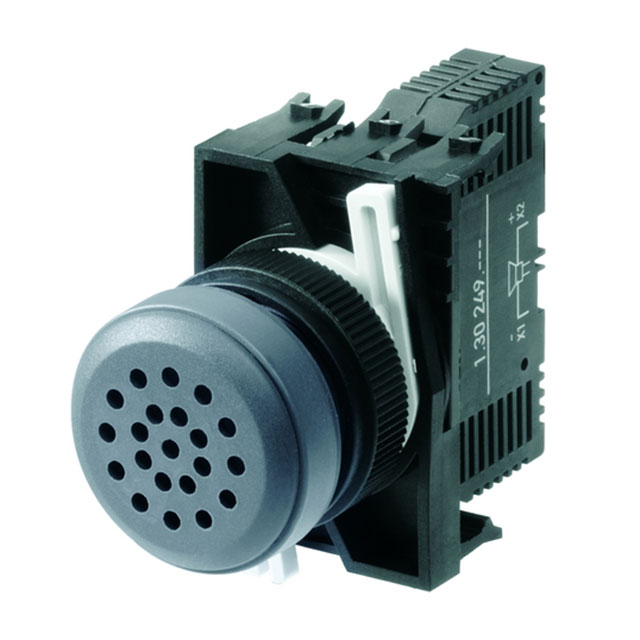

BUZZER PIEZO 24V 22.3MM CUSTOM

Search across all available documentation for this part.

Active

RAFI USA

BUZZER PIEZO 24V 22.3MM CUSTOM

Technical Specifications

Parameters and characteristics for this part

Specification	1.30.249.001/0000

Current - Supply	25 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.75 kHz
Height - Seated (Max) [Max]	9.8 mm
Height - Seated (Max) [Max]	0.386 in
Ingress Protection	IP65 - Dust Tight, Water Resistant
Input Type	DC
Mounting Type	Custom
Operating Mode	Pulse
Port Location	Top
Size / Dimension [diameter]	22.3 mm
Size / Dimension [diameter]	0.878 in
Sound Pressure Level (SPL)	70 dB
Technology	Piezo
Termination	Connector
Voltage - Rated	24 VDC

Part	Voltage - Rated	Port Location	Current - Supply	Technology	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Driver Circuitry	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination	Ingress Protection	Mounting Type	Operating Mode	Sound Pressure Level (SPL)	Frequency	Input Type
RAFI USA 1.30.249.001/0000	24 VDC	Top	25 mA	Piezo	9.8 mm	0.386 in	Indicator Internally Driven	22.3 mm	0.878 in	Connector	IP65 - Dust Tight Water Resistant	Custom	Pulse	70 dB	2.75 kHz	DC
RAFI USA 1.30.249.002/0000	12 VDC	Side	25 mA		24.1 mm	0.949 in		22.3 mm	0.878 in	Solder Pads	IP65		Pulse	70 dB	2.75 kHz	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.90

General part information

Buzzers Indicator, Internally Driven Piezo 24 V 25mA 2.75kHz 70dB @ 24V, 100cm Custom Connector
