LE2870C5A

Active

BULGIN LIMITED

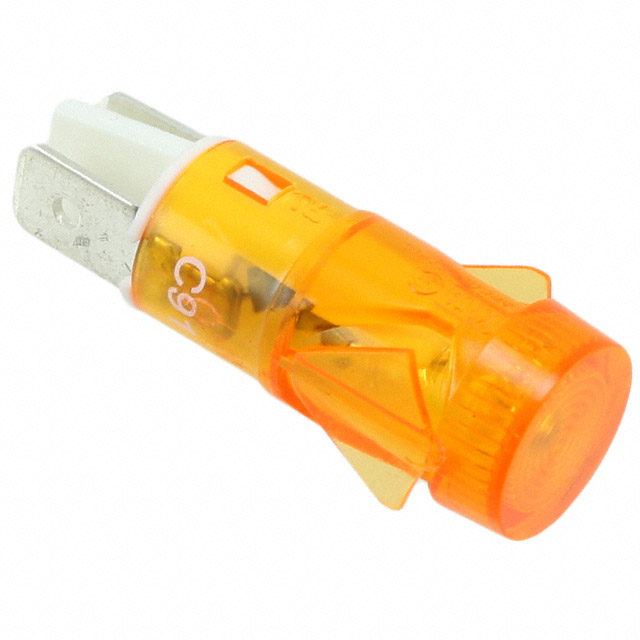

LED PANEL MOUNT INDICATOR UNI-COLOR AMBER 2-PIN

Search across all available documentation for this part.

Active

BULGIN LIMITED

LED PANEL MOUNT INDICATOR UNI-COLOR AMBER 2-PIN

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Lens Transparency	Lens Size [diameter]	Type	Ratings	Panel Cutout Shape	Voltage [Min]	Voltage [Max]	Panel Cutout Dimensions	Panel Cutout Dimensions	Termination Style	Lamp Color	Voltage
BULGIN LIMITED LE2870C5A	Amber	Diffused	13.6 mm	LED	AC	Round	125 V	250 V	12.7 mm	0.5 in	Quick Connect - 0.250" (6.3mm)	Amber
BULGIN LIMITED LE2870C39018	Amber	Diffused	13.6 mm	LED	DC	Round			12.7 mm	0.5 in	Quick Connect - 0.250" (6.3mm)	Amber	28 V
BULGIN LIMITED LE2870C5R	Red	Diffused	13.6 mm	LED	AC	Round	125 V	250 V	12.7 mm	0.5 in	Quick Connect - 0.250" (6.3mm)	Red
BULGIN LIMITED LE2870WL39007	Red	Diffused		LED	DC	Round			12.7 mm	0.5 in	Wire Leads - 8" (203.20mm)	Red	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Amber Diffused 125V ~ 250V Quick Connect - 0.250" (6.3mm)

Technical documentation and resources
