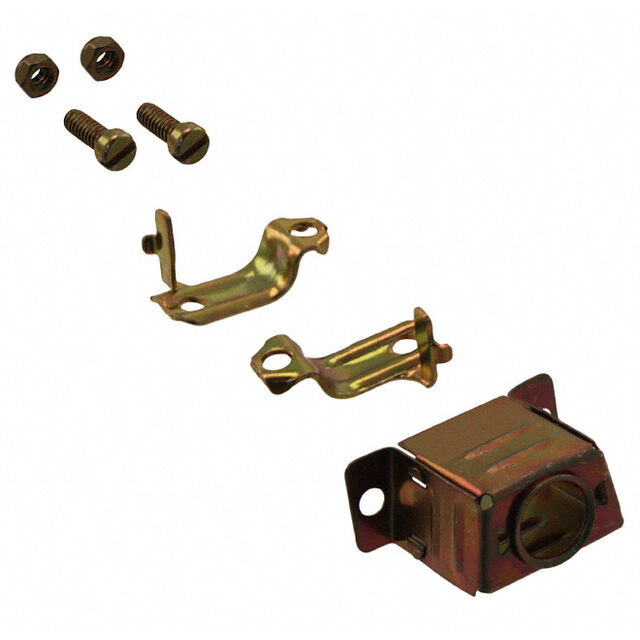

DE24657

Active

ITT Cannon, LLC

D SUB BACKSHELL, DE, 180°, STEEL BODY

Search across all available documentation for this part.

Active

ITT Cannon, LLC

D SUB BACKSHELL, DE, 180°, STEEL BODY

Technical Specifications

Parameters and characteristics for this part

Specification	DE24657

Accessory Type	One Piece Backshell
Cable Exit	180 °
Cable Type	Flat
Compatible D-Sub Size	HD15pos, 9pos
Compatible Shell Size	E
Material	Metal, Carbon Steel
Number of Positions	9
Plating	Yellow Chromate over Cadmium
Primary Material	Metal
Shielding	Unshielded

Part	Primary Material	Shielding	Number of Positions	Compatible D-Sub Size	Cable Exit	Plating	Compatible Shell Size	Accessory Type	Material	Cable Type
ITT Cannon, LLC DE24657	Metal	Unshielded	9	9pos HD15pos	180 °	Yellow Chromate over Cadmium	E	One Piece Backshell	Carbon Steel Metal	Flat

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The DE24657 is a straight Metal Backshell, made of steel with zinc finish. The D-sub series backshell provides strain relief.
