1032A 0101000
ActiveBelden Inc.

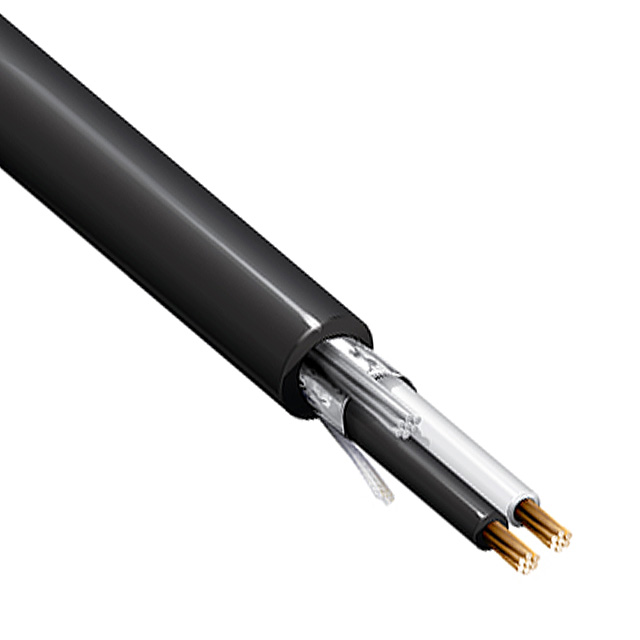

CABLE 2COND 18AWG BLK SHLD 1000'
Deep-Dive with AI
Search across all available documentation for this part.
1032A 0101000
ActiveBelden Inc.
CABLE 2COND 18AWG BLK SHLD 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1032A 0101000 | 1032A Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare | Copper, Bare |
| Conductor Strand [custom] | 26 AWG | 26 AWG |
| Conductor Strand [custom] | 7 | 7 |
| Jacket (Insulation) Diameter [diameter] | 6.02 mm | 6.02 mm |
| Jacket (Insulation) Diameter [diameter] | 0.237 in | 0.237 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.94 mm | 0.94 mm |
| Jacket (Insulation) Thickness | 0.037 in | 0.037 in |
| Jacket Color | Black | Blue, Black |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 - 3048 m |
| Length | - | 10000 ft |
| Number of Conductors | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Ratings | UL Style 2464 | UL Style 2464 |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil | Foil |
| Wire Gauge | 18 AWG | 18 AWG |
1032A Series
CABLE 2CON 18AWG BLUE SHLD
| Part | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Shield Coverage | Wire Gauge | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Number of Conductors | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket Color | Length [x] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. 1032A 0061000 | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Copper, Bare | 100 % | 18 AWG | 1000 ft | 304.8 m | 0.94 mm | 0.037 in | Aluminum | 6.02 mm | 0.237 in | Multi-Conductor | 2 | Foil | 26 AWG | 7 | Poly-Vinyl Chloride (PVC) | Blue | ||
Belden Inc. 1032A 01010000 | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Copper, Bare | 100 % | 18 AWG | 3048 m | 0.94 mm | 0.037 in | Aluminum | 6.02 mm | 0.237 in | Multi-Conductor | 2 | Foil | 26 AWG | 7 | Poly-Vinyl Chloride (PVC) | Black | 10000 ft | ||
Belden Inc. 1032A 0101000 | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Copper, Bare | 100 % | 18 AWG | 1000 ft | 304.8 m | 0.94 mm | 0.037 in | Aluminum | 6.02 mm | 0.237 in | Multi-Conductor | 2 | Foil | 26 AWG | 7 | Poly-Vinyl Chloride (PVC) | Black | UL Style 2464 | |
Belden Inc. 1032A 00610000 | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Copper, Bare | 100 % | 18 AWG | 3048 m | 0.94 mm | 0.037 in | Aluminum | 6.02 mm | 0.237 in | Multi-Conductor | 2 | Foil | 26 AWG | 7 | Poly-Vinyl Chloride (PVC) | Blue | 10000 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 1384.42 | |
| 3 | $ 1280.77 | |||
| 5 | $ 1236.35 | |||
| 7 | $ 1206.74 | |||
Description
General part information
1032A Series
2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 18 AWG Foil 1000.0' (304.8m)
