1032A 00610000

Active

Belden Inc.

CABLE 2CON 18AWG BLU SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 18AWG BLU SHLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 0.88

General part information

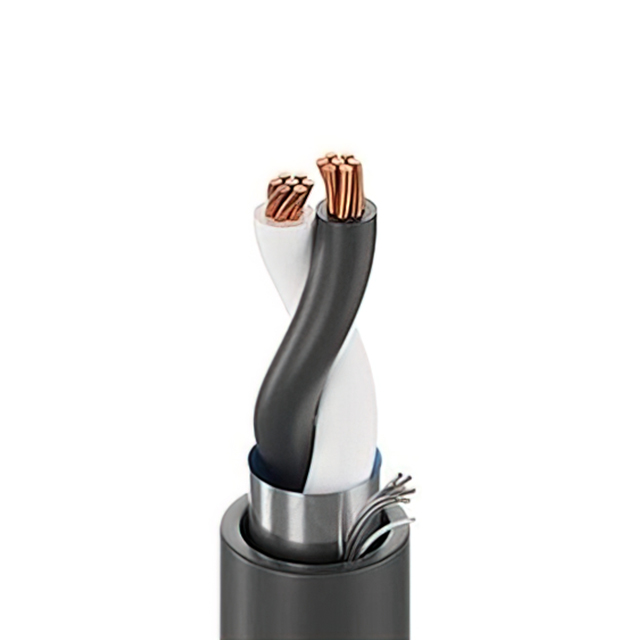

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Blue 18 AWG Foil 10000' (3048.0m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1032A 00610000	1032A Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	26 AWG	26 AWG
Conductor Strand [custom]	7	7
Jacket (Insulation) Diameter [diameter]	6.02 mm	6.02 mm
Jacket (Insulation) Diameter [diameter]	0.237 in	0.237 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm	0.94 mm
Jacket (Insulation) Thickness	0.037 in	0.037 in
Jacket Color	Blue	Blue, Black
Length	3048 m	304.8 - 3048 m
Length	-	1000 ft
Length [x]	10000 ft	10000 ft
Number of Conductors	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	-	UL Style 2464
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Wire Gauge	18 AWG	18 AWG

CABLE 2CON 18AWG BLUE SHLD

Part	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Shield Coverage	Wire Gauge	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Number of Conductors	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Jacket Color	Length [x]	Ratings
Belden Inc. 1032A 0061000	Poly-Vinyl Chloride (PVC)	-30 ░C	105 ░C	Copper, Bare	100 %	18 AWG	1000 ft	304.8 m	0.94 mm	0.037 in	Aluminum	6.02 mm	0.237 in	Multi-Conductor	2	Foil	26 AWG	7	Poly-Vinyl Chloride (PVC)	Blue
Belden Inc. 1032A 01010000	Poly-Vinyl Chloride (PVC)	-30 ░C	105 ░C	Copper, Bare	100 %	18 AWG		3048 m	0.94 mm	0.037 in	Aluminum	6.02 mm	0.237 in	Multi-Conductor	2	Foil	26 AWG	7	Poly-Vinyl Chloride (PVC)	Black	10000 ft
Belden Inc. 1032A 0101000	Poly-Vinyl Chloride (PVC)	-30 ░C	105 ░C	Copper, Bare	100 %	18 AWG	1000 ft	304.8 m	0.94 mm	0.037 in	Aluminum	6.02 mm	0.237 in	Multi-Conductor	2	Foil	26 AWG	7	Poly-Vinyl Chloride (PVC)	Black		UL Style 2464
Belden Inc. 1032A 00610000	Poly-Vinyl Chloride (PVC)	-30 ░C	105 ░C	Copper, Bare	100 %	18 AWG		3048 m	0.94 mm	0.037 in	Aluminum	6.02 mm	0.237 in	Multi-Conductor	2	Foil	26 AWG	7	Poly-Vinyl Chloride (PVC)	Blue	10000 ft
