Q-0D02P0003060i

Active

Amphenol Custom Cable

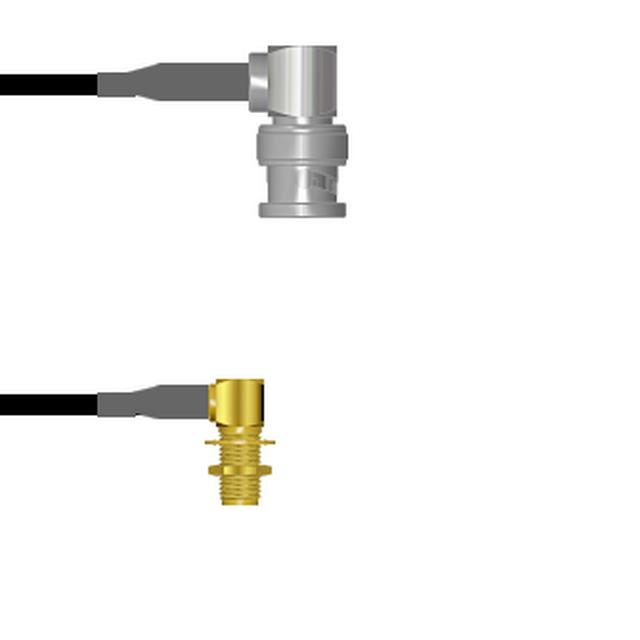

CBL ASSY BNC-SMA PLUG-JACK 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D02P0003060i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-JACK 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D02P0003060i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0D02P0 Series

Part	Features	Frequency - Max [Max]	2nd Connector	1st Connector	2nd Connector Mounting Feature	Cable Type	Style	Length	Length	2nd Connector Mounting Type	1st Connector Mounting Type	Color	1st Contact Gender	2nd Contact Gender	Overall Impedance	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0D02P0003036i	Shielded	4 GHz	SMA Jack Right Angle	BNC Plug Right Angle	Bulkhead - Front Side Nut	RG-174	BNC to SMA	91.44 cm	36 in	Panel Mount	Free Hanging (In-Line)	Black	Male	Female	50 Ohms
Amphenol Custom Cable Q-0D02P0005036i	Shielded	4 GHz	SMA Jack Right Angle	BNC Plug Right Angle	Bulkhead - Front Side Nut	RG-316	BNC to SMA	91.44 cm	36 in	Panel Mount	Free Hanging (In-Line)	Copper	Male	Female	50 Ohms
Amphenol Custom Cable Q-0D02P0005072i	Shielded	4 GHz	SMA Jack Right Angle	BNC Plug Right Angle	Bulkhead - Front Side Nut	RG-316	BNC to SMA	1.8 m	72 in	Panel Mount	Free Hanging (In-Line)	Copper	Male	Female	50 Ohms	6 ft
Amphenol Custom Cable Q-0D02P00051.5M	Shielded	4 GHz	SMA Jack Right Angle	BNC Plug Right Angle	Bulkhead - Front Side Nut	RG-316	BNC to SMA	1.5 m	59.1 in	Panel Mount	Free Hanging (In-Line)	Copper	Male	Female	50 Ohms	4.9 ft
Amphenol Custom Cable Q-0D02P0003002M	Shielded	4 GHz	SMA Jack Right Angle	BNC Plug Right Angle	Bulkhead - Front Side Nut	RG-174	BNC to SMA	2 m	78.7 in	Panel Mount	Free Hanging (In-Line)	Black	Male	Female	50 Ohms	6.6 ft
Amphenol Custom Cable Q-0D02P0003012i	Shielded	4 GHz	SMA Jack Right Angle	BNC Plug Right Angle	Bulkhead - Front Side Nut	RG-174	BNC to SMA	304.8 mm	12 "	Panel Mount	Free Hanging (In-Line)	Black	Male	Female	50 Ohms
Amphenol Custom Cable Q-0D02P0003.25M	Shielded	4 GHz	SMA Jack Right Angle	BNC Plug Right Angle	Bulkhead - Front Side Nut	RG-174	BNC to SMA			Panel Mount	Free Hanging (In-Line)	Black	Male	Female	50 Ohms		9.843 "	250 mm
Amphenol Custom Cable Q-0D02P0003072i	Shielded	4 GHz	SMA Jack Right Angle	BNC Plug Right Angle	Bulkhead - Front Side Nut	RG-174	BNC to SMA	1.8 m	72 in	Panel Mount	Free Hanging (In-Line)	Black	Male	Female	50 Ohms	6 ft
Amphenol Custom Cable Q-0D02P0003060i	Shielded	4 GHz	SMA Jack Right Angle	BNC Plug Right Angle	Bulkhead - Front Side Nut	RG-174	BNC to SMA	1.5 m	5 '	Panel Mount	Free Hanging (In-Line)	Black	Male	Female	50 Ohms	5 ft
Amphenol Custom Cable Q-0D02P00032.5M	Shielded	4 GHz	SMA Jack Right Angle	BNC Plug Right Angle	Bulkhead - Front Side Nut	RG-174	BNC to SMA	2.5 m	98.4 in	Panel Mount	Free Hanging (In-Line)	Black	Male	Female	50 Ohms	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 92.82
		25	$ 91.00
		50	$ 89.18
		100	$ 87.36
		250	$ 85.54

Description

General part information

Q-0D02P0 Series

Cable Assembly Coaxial BNC to SMA RG-174 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
