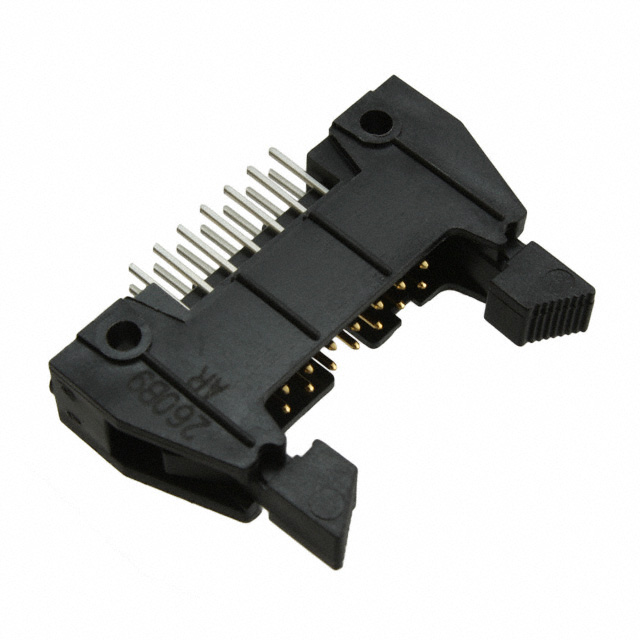

D3314-6202-AR

Active

3M (TC)

80001204884 D3314-6202-AR =14/HDR/SL/STR/HT/.112/10AVG/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

D3314-6202-AR

Active

3M (TC)

80001204884 D3314-6202-AR =14/HDR/SL/STR/HT/.112/10AVG/ROHS

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D3314-6202-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Color	Black
Insulation Height	17.27 mm
Insulation Height	0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.652 in
Overall Contact Length	16.56 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

D3314 Series

Part	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Height	Insulation Height	Insulation Color	Connector Type	Contact Material	Number of Rows	Contact Length - Mating	Contact Length - Mating [x]	Termination	Number of Positions	Contact Shape	Contact Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Material	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Overall Contact Length	Overall Contact Length
3M (TC) D3314-5302-AR	0.1 in	2.54 mm	2.84 mm	0.112 in	Shrouded - 4 Wall	0.34 in	8.64 mm	Black	Header	Brass	2	6.1 mm	0.24 in	Solder	14	Square	Male Pin	All	1 çm	39.4 çin	Board to Cable/Wire	1.75 A	105 ░C	-55 °C	Gold	Through Hole Right Angle	10 çin	0.25 çm	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Latch Lock/Eject Hooks Long	2.54 mm	0.1 in	UL94 V-0
3M (TC) D3314-5202-AR	0.1 in	2.54 mm	2.84 mm	0.112 in	Shrouded - 4 Wall	0.34 in	8.64 mm	Black	Header	Brass	2	6.1 mm	0.24 in	Solder	14	Square	Male Pin	All	1 çm	39.4 çin	Board to Cable/Wire	1.75 A	105 ░C	-55 °C	Gold	Through Hole Right Angle	10 çin	0.25 çm	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Latch Lock/Eject Hooks Short	2.54 mm	0.1 in	UL94 V-0
3M (TC) D3314-6002-AR	0.1 in	2.54 mm	2.84 mm	0.112 in	Shrouded - 4 Wall	0.68 in	17.27 mm	Black	Header	Brass	2	6.1 mm	0.24 in	Solder	14	Square	Male Pin	All	1 çm	39.4 çin	Board to Cable/Wire	1.75 A	105 ░C	-55 °C	Gold	Through Hole	10 çin	0.25 çm	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	2.54 mm	0.1 in	UL94 V-0	0.652 in	16.56 mm
3M (TC) D3314-5002-AR	0.1 in	2.54 mm	2.84 mm	0.112 in	Shrouded - 4 Wall	0.34 in	8.64 mm	Black	Header	Brass	2	6.1 mm	0.24 in	Solder	14	Square	Male Pin	All	1 çm	39.4 çin	Board to Cable/Wire	1.75 A	105 ░C	-55 °C	Gold	Through Hole Right Angle	10 çin	0.25 çm	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	2.54 mm	0.1 in	UL94 V-0
3M (TC) D3314-6202-AR	0.1 in	2.54 mm	2.84 mm	0.112 in	Shrouded - 4 Wall	0.68 in	17.27 mm	Black	Header	Brass	2	6.1 mm	0.24 in	Solder	14	Square	Male Pin	All	1 çm	39.4 çin	Board to Cable/Wire	1.75 A	105 ░C	-55 °C	Gold	Through Hole	10 çin	0.25 çm	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Latch Lock/Eject Hooks Short	2.54 mm	0.1 in	UL94 V-0	0.652 in	16.56 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.72
		10	$ 1.50
		350	$ 1.21
		700	$ 1.12
Newark	Each	1000	$ 1.57

Description

General part information

D3314 Series

Connector Header Through Hole 14 position 0.100" (2.54mm)
