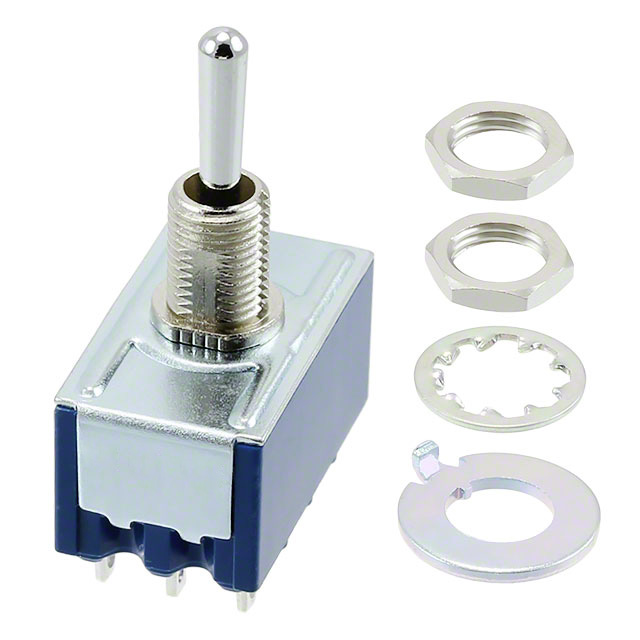

8A4101-Z

Active

Nidec Components Corporation

SWITCH TOGGLE SP3T 6A 125V

Search across all available documentation for this part.

Active

Nidec Components Corporation

SWITCH TOGGLE SP3T 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	8A4101-Z

Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SP3T
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SWITCH TOGGLE SP3T 6A 125V

Part	Voltage Rating - DC	Features	Voltage Rating - AC	Termination Style	Current Rating (Amps)	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Circuit	Panel Cutout Dimensions [diameter]	Bushing Thread	Electrical Life
Nidec Components Corporation 8A4101-Z	30 V	Jumper needed to achieve triple throw	125 V	Solder Lug	4 A, 6 A	Non-Illuminated	-30 ░C	85 °C	Standard Round	On-On-On	SP3T	6.5 mm	1/4-40	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SP3T Panel Mount
