CDFR7W2213L262

Active

MH Connectors

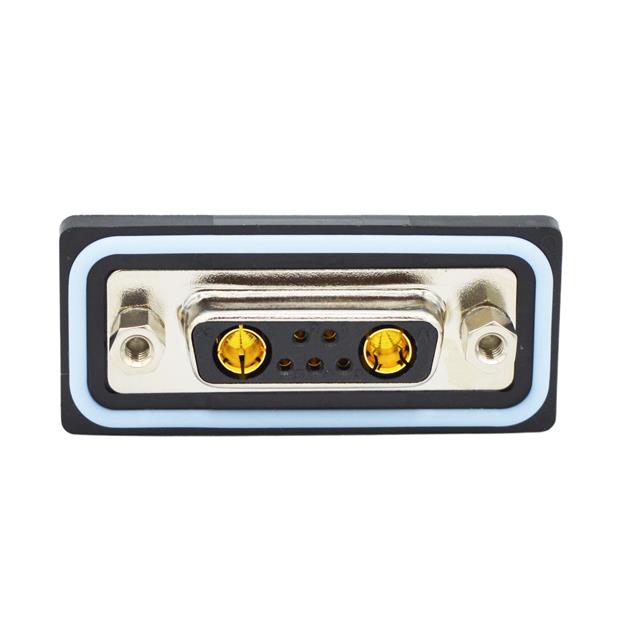

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-7W2, RECEPTACLE, 7 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsWhite Papers EN Miscellaneous EN +2

CDFR7W2213L262

Active

MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-7W2, RECEPTACLE, 7 CONTACTS

Deep-Dive with AI

DocumentsWhite Papers EN Miscellaneous EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFR7W2213L262

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Board Lock, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder

CDFR7W2 Series

Part	Termination	Connector Type	Shell Size, Connector Layout	Contact Material	Current Rating (Amps)	Number of Rows	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Contact Finish	Shell Material, Finish	Mounting Type	Flange Feature	Connector Style	Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish Thickness
MH Connectors CDFR7W2213L462	Solder	Receptacle Female Sockets	2 (DA A) - 7W2	Brass	5 A 40 A	2	7	2	UL94 V-0	Gold	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Combo D-Sub	Black	Signal and Power	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin	Board Lock Mounting Brackets
MH Connectors CDFR7W2213L412	Solder	Receptacle Female Sockets	2 (DA A) - 7W2	Brass	5 A 40 A	2	7	2	UL94 V-0	Gold	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Combo D-Sub	Black	Signal and Power	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin
MH Connectors CDFR7W2213L262	Solder	Receptacle Female Sockets	2 (DA A) - 7W2	Brass	5 A 20 A	2	7	2	UL94 V-0	Gold	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Combo D-Sub	Black	Signal and Power	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin	Board Lock Mounting Brackets
MH Connectors CDFR7W2213L211	Solder	Receptacle Female Sockets	2 (DA A) - 7W2	Brass	5 A 20 A	2	7	2	UL94 V-0	Gold	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Combo D-Sub	Black	Signal and Power	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)				Flash
MH Connectors CDFR7W2113L411	Solder	Male Pins Plug	2 (DA A) - 7W2	Brass	5 A 40 A	2	7	2	UL94 V-0	Gold	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Combo D-Sub	Black	Signal and Power	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)			Grounding Indents	Flash
MH Connectors CDFR7W2213L461	Solder	Receptacle Female Sockets	2 (DA A) - 7W2	Brass	5 A 40 A	2	7	2	UL94 V-0	Gold	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Combo D-Sub	Black	Signal and Power	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)			Board Lock Mounting Brackets	Flash
MH Connectors CDFR7W2113L261	Solder	Male Pins Plug	2 (DA A) - 7W2	Brass	5 A 20 A	2	7	2	UL94 V-0	Gold	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Combo D-Sub	Black	Signal and Power	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)			Board Lock Grounding Indents Mounting Brackets	Flash
MH Connectors CDFR7W2113L461	Solder	Male Pins Plug	2 (DA A) - 7W2	Brass	5 A 40 A	2	7	2	UL94 V-0	Gold	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Combo D-Sub	Black	Signal and Power	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)			Board Lock Grounding Indents Mounting Brackets	Flash
MH Connectors CDFR7W2113L262	Solder	Male Pins Plug	2 (DA A) - 7W2	Brass	5 A 20 A	2	7	2	UL94 V-0	Gold	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Combo D-Sub	Black	Signal and Power	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin	Board Lock Grounding Indents Mounting Brackets
MH Connectors CDFR7W2113L462	Solder	Male Pins Plug	2 (DA A) - 7W2	Brass	5 A 40 A	2	7	2	UL94 V-0	Gold	Nickel Plated Steel	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Combo D-Sub	Black	Signal and Power	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	0.76 Ám	30 Áin	Board Lock Grounding Indents Mounting Brackets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	54	$ 19.74
Newark	Each	50	$ 18.69
		100	$ 18.07
		250	$ 17.07

Description

General part information

CDFR7W2 Series

7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
