Q-0B03F000H036i

Active

Amphenol Custom Cable

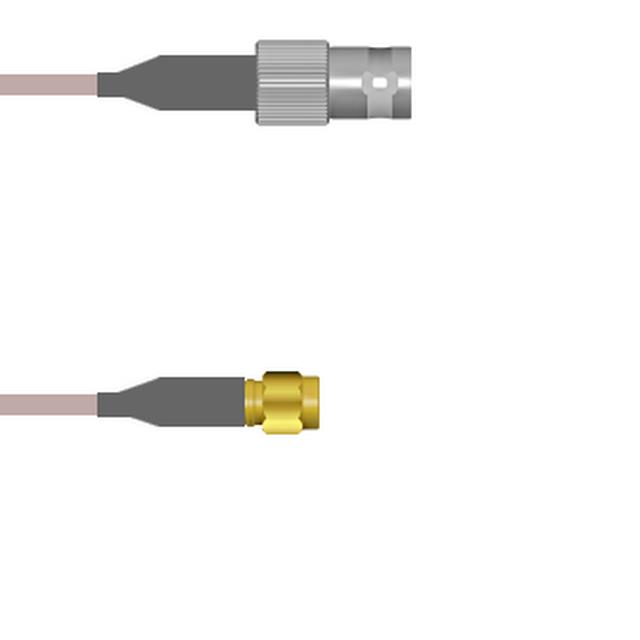

COAX CBL BNC TO SMA 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0B03F000H036i

Active

Amphenol Custom Cable

COAX CBL BNC TO SMA 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0B03F000H036i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0B03F0 Series

Part	Color	2nd Connector Mounting Type	1st Connector Mounting Type	Overall Impedance	2nd Contact Gender	Frequency - Max [Max]	Cable Type	1st Connector	Length	Length	Length	Style	Connector Impedance	Features	2nd Connector	1st Contact Gender	Cable Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-0B03F000H084i	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	4 GHz	RG-142	BNC Jack	84 in	2.1 m	7 ft	BNC to SMA	50 Ohms	Shielded	SMA Plug	Female	50 Ohms
Amphenol Custom Cable Q-0B03F000H2.5M	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	4 GHz	RG-142	BNC Jack	98.4 in	2.5 m	8.2 '	BNC to SMA	50 Ohms	Shielded	SMA Plug	Female	50 Ohms
Amphenol Custom Cable Q-0B03F000H036i	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	4 GHz	RG-142	BNC Jack	36 in	91.44 cm		BNC to SMA	50 Ohms	Shielded	SMA Plug	Female	50 Ohms
Amphenol Custom Cable Q-0B03F000H012i	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	4 GHz	RG-142	BNC Jack	12 "	304.8 mm		BNC to SMA	50 Ohms	Shielded	SMA Plug	Female	50 Ohms
Amphenol Custom Cable Q-0B03F000H.25M	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	4 GHz	RG-142	BNC Jack				BNC to SMA		Shielded	SMA Plug	Female		9.843 "	250 mm
Amphenol Custom Cable Q-0B03F000H006i	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	4 GHz	RG-142	BNC Jack	6 in	152.4 mm		BNC to SMA	50 Ohms	Shielded	SMA Plug	Female	50 Ohms
Amphenol Custom Cable Q-0B03F000H004F	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	4 GHz	RG-142	BNC Jack	48 in	1200 mm	4 ft	BNC to SMA	50 Ohms	Shielded	SMA Plug	Female	50 Ohms
Amphenol Custom Cable Q-0B03F000H009i	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	4 GHz	RG-142	BNC Jack	9 "	228.6 mm		BNC to SMA	50 Ohms	Shielded	SMA Plug	Female	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 101.76
		25	$ 99.75
		50	$ 97.75
		100	$ 95.74
		250	$ 93.73

Description

General part information

Q-0B03F0 Series

Cable Assembly Coaxial BNC to SMA RG-142 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
