R141410000W

Active

Radiall USA, Inc.

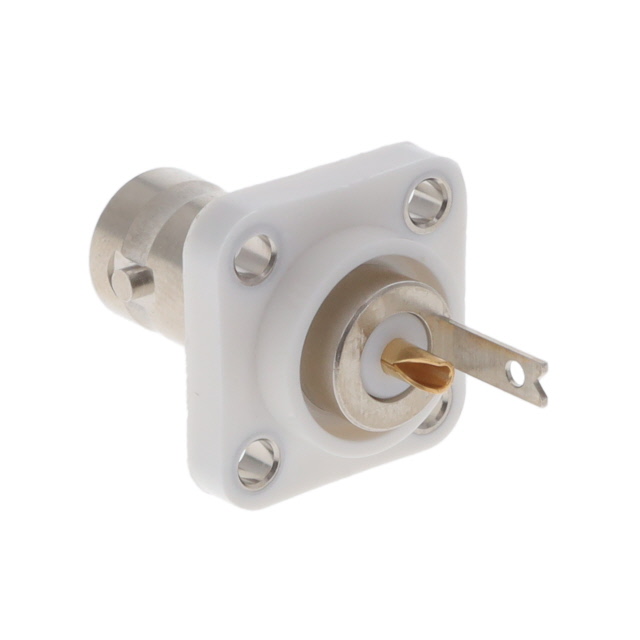

RF BNC CONNECTOR, 1 CONTACT(S), FEMALE, PANEL MOUNT, SOLDER LUG TERMINAL, LOCKING, JACK,

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF BNC CONNECTOR, 1 CONTACT(S), FEMALE, PANEL MOUNT, SOLDER LUG TERMINAL, LOCKING, JACK,

Technical Specifications

Parameters and characteristics for this part

Specification	R141410000W

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Center Contact Material	Dielectric Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Connector Style	Shield Termination	Housing Color	Voltage Rating	Fastening Type	Body Material	Mounting Feature	Impedance	Center Contact Plating	Frequency - Max [Max]	Contact Termination	Body Finish	Number of Ports	Mating Cycles
Radiall USA, Inc. R141410000W	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Extended Insulation	-65 ░C	165 °C	Female Socket Jack	BNC	Solder	Silver	500 V	Bayonet Lock	Brass	Flange	50 Ohms	Gold	4 GHz	Solder Cup	Nickel	1	500
