TA5FS11

Active

Switchcraft Inc.

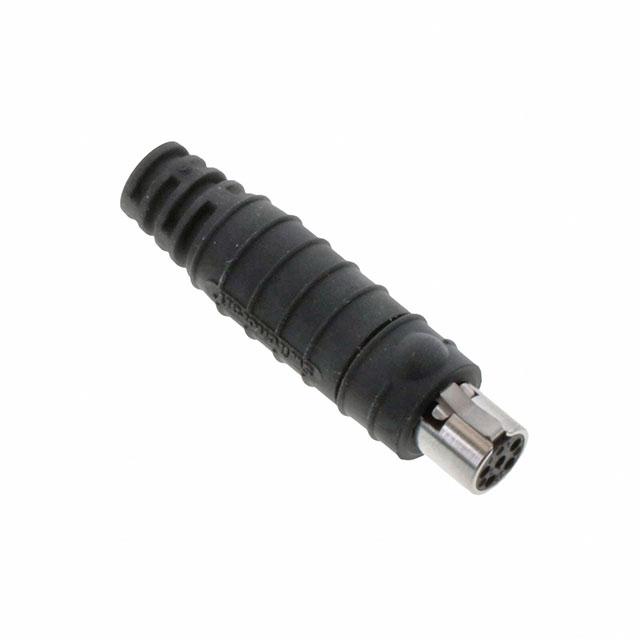

CONN PLUG FMALE MINI XLR 5P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 5P SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TA5FS11	TA5FS1 Series

Applications	Audio, Medical	Audio, Medical
Backshell Material, Plating	Thermoplastic, Thermoplastic Rubber	Thermoplastic, Thermoplastic Rubber
Cable Opening	-	4.06 mm
Cable Opening [Max] [diameter]	3.05 mm	3.05 mm
Cable Opening [Max] [diameter]	0.12 in	0.12 - 0.16 in
Cable Opening [Min] [diameter]	2.54 mm	2.54 - 3.56 mm
Cable Opening [Min] [diameter]	0.1 in	0.1 - 0.14 in
Color	Black, Silver	Black, Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	4 A	4 A
Fastening Type	Latch Lock	Latch Lock
Features	Backshell, Strain Relief, Cable Clamp	Backshell, Strain Relief, Cable Clamp
Ingress Protection	IP66, IP65	IP66, IP65
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Copper Alloy	Copper Alloy
Shell Size - Insert	Mini XLR	Mini XLR
Voltage Rating	125 VAC	125 VAC

CONN PLUG FMALE MINI XLR 5P SLDR

Part	Contact Material	Features	Current Rating (Amps)	Mounting Type	Primary Material	Applications	Shell Material	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Contact Finish - Mating	Shell Size - Insert	Fastening Type	Orientation	Shell Finish	Insert Material	Ingress Protection	Connector Type	Voltage Rating	Color	Backshell Material, Plating	Cable Opening [Max] [diameter]
Switchcraft Inc. TA5FS15	Copper Alloy	Backshell, Cable Clamp, Strain Relief	4 A	Free Hanging (In-Line)	Metal	Audio, Medical	Copper Alloy	4.06 mm	0.16 in	0.14 in	3.56 mm	Silver	Mini XLR	Latch Lock	Keyed	Nickel	Thermoplastic	IP65, IP66	Female Sockets, Plug	125 VAC	Black, Silver	Thermoplastic, Thermoplastic Rubber
Switchcraft Inc. TA5FS11	Copper Alloy	Backshell, Cable Clamp, Strain Relief	4 A	Free Hanging (In-Line)	Metal	Audio, Medical	Copper Alloy		0.12 in	0.1 in	2.54 mm	Silver	Mini XLR	Latch Lock	Keyed	Nickel	Thermoplastic	IP65, IP66	Female Sockets, Plug	125 VAC	Black, Silver	Thermoplastic, Thermoplastic Rubber	3.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 17.65

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup
