8059-2G1

Obsolete

TE Connectivity AMP Connectors

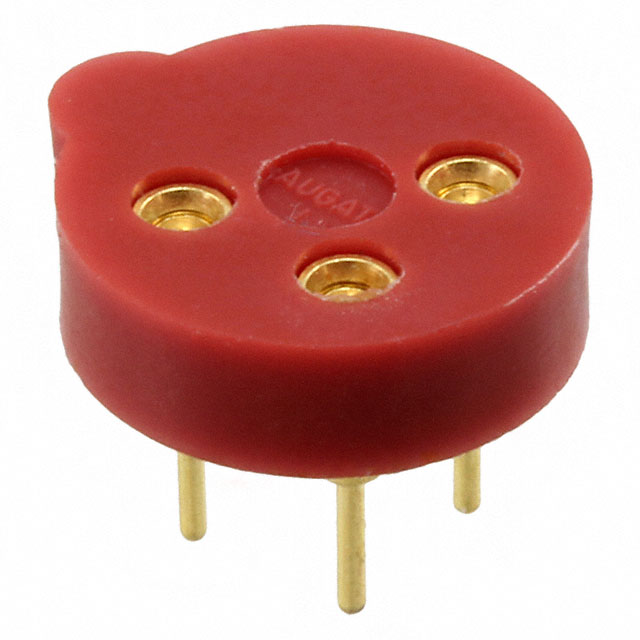

CONN TRANSIST TO-5 3POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN TRANSIST TO-5 3POS GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8059-2G1	8059 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Material - Mating	Copper Alloy	Copper Alloy
Contact Material - Post [custom]	Copper Alloy	Copper Alloy
Contact Resistance	20 mOhm	20 mOhm
Current Rating (Amps)	3 A	3 A
Features	-	Closed Frame
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	-	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	3	3 - 8
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Termination	Solder	Solder
Termination Post Length	0.115 "	0.115 "
Termination Post Length	2.92 mm	2.92 mm
Type	Transistor, TO-5	Transistor, TO-5

CONN SOCKET TRANSIST TO-5 8POS

Part	Features	Contact Resistance	Termination Post Length	Termination Post Length	Contact Material - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Material Flammability Rating	Number of Positions or Pins (Grid)	Contact Finish - Post	Contact Material - Mating	Mounting Type	Housing Material	Termination	Type	Current Rating (Amps)
TE Connectivity AMP Connectors 8059-2G5	Closed Frame	20 mOhm	0.115 "	2.92 mm	Copper Alloy	-55 °C	125 °C	Gold	UL94 V-0	8	Gold	Copper Alloy	Through Hole	Polyamide (PA), Nylon	Solder	Transistor, TO-5
TE Connectivity AMP Connectors 8059-2G1		20 mOhm	0.115 "	2.92 mm	Copper Alloy	-55 °C	125 °C	Gold		3	Gold	Copper Alloy	Through Hole	Polyamide (PA), Nylon	Solder	Transistor, TO-5	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 (Round) Pos Transistor, TO-5 Socket Gold Through Hole
