325-010-500-209

Active

EDAC Inc.

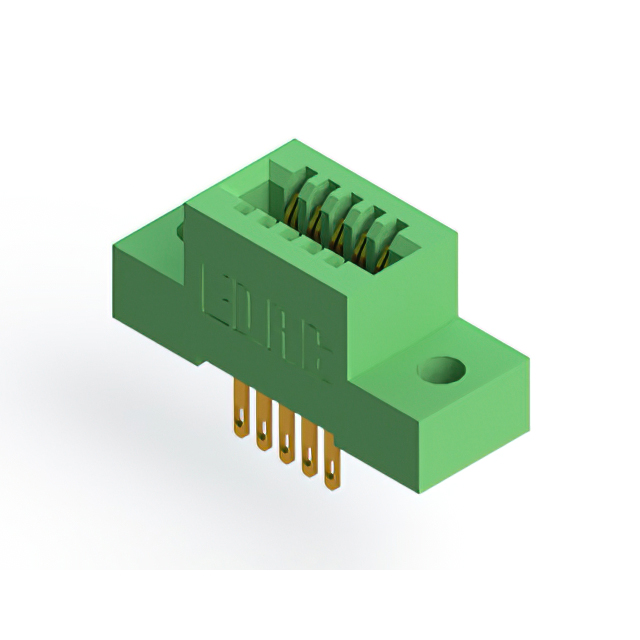

CARD EDGE CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE .16, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

325-010-500-209

Active

EDAC Inc.

CARD EDGE CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE .16, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-010-500-209

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	0.16 in
Flange Feature [diameter]	4.06 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	10
Number of Positions/Bay/Row [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

325-010 Series

Part	Contact Material	Flange Feature	Number of Positions/Bay/Row [custom]	Contact Type	Termination	Color	Pitch [x]	Pitch [x]	Card Type	Number of Rows	Material - Insulation	Gender	Card Thickness	Card Thickness	Number of Positions	Read Out	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Rows	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-010-540-108	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	10	Cantilever	Wire Wrap	Green	2.54 mm	0.1 in	Non Specified - Single Edge	1	Diallyl Phthalate (DAP)	Female	3.18 mm	0.125 in	10	Single	10 Áin	0.25 Ám	125 °C	-65 ░C	Through Hole	1	Gold
EDAC Inc. 325-010-520-109	Copper Alloy	Flush Mount Top Opening Unthreaded	10	Cantilever	Solder	Green	2.54 mm	0.1 in	Non Specified - Single Edge	1	Diallyl Phthalate (DAP)	Female	3.18 mm	0.125 in	10	Single	10 Áin	0.25 Ám	125 °C	-65 ░C	Through Hole	1	Gold	0.16 in	4.06 mm
EDAC Inc. 325-010-520-201	Copper Alloy		5	Cantilever	Solder	Green	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	Female	3.18 mm	0.125 in	10	Dual	10 Áin	0.25 Ám	125 °C	-65 ░C	Through Hole	2	Gold
EDAC Inc. 325-010-500-209	Copper Alloy	Flush Mount Top Opening Unthreaded	5	Cantilever	Solder Eyelet(s)	Green	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	Female	3.18 mm	0.125 in	10	Dual	10 Áin	0.25 Ám	125 °C	-65 ░C	Through Hole	2	Gold	0.16 in	4.06 mm
EDAC Inc. 325-010-500-208	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	5	Cantilever	Solder Eyelet(s)	Green	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	Female	3.18 mm	0.125 in	10	Dual	10 Áin	0.25 Ám	125 °C	-65 ░C	Through Hole	2	Gold
EDAC Inc. 325-010-540-207	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	5	Cantilever	Wire Wrap	Green	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	Female	3.18 mm	0.125 in	10	Dual	10 Áin	0.25 Ám	125 °C	-65 ░C	Through Hole	2	Gold
EDAC Inc. 325-010-540-109	Copper Alloy	Flush Mount Top Opening Unthreaded	10	Cantilever	Wire Wrap	Green	2.54 mm	0.1 in	Non Specified - Single Edge	1	Diallyl Phthalate (DAP)	Female	3.18 mm	0.125 in	10	Single	10 Áin	0.25 Ám	125 °C	-65 ░C	Through Hole	1	Gold	0.16 in	4.06 mm
EDAC Inc. 325-010-540-107	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	10	Cantilever	Wire Wrap	Green	2.54 mm	0.1 in	Non Specified - Single Edge	1	Diallyl Phthalate (DAP)	Female	3.18 mm	0.125 in	10	Single	10 Áin	0.25 Ám	125 °C	-65 ░C	Through Hole	1	Gold
EDAC Inc. 325-010-540-208	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	5	Cantilever	Wire Wrap	Green	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	Female	3.18 mm	0.125 in	10	Dual	10 Áin	0.25 Ám	125 °C	-65 ░C	Through Hole	2	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.45
Newark	Each	1	$ 12.41
		100	$ 9.06
		250	$ 7.09
		500	$ 6.17
		1000	$ 4.69

Description

General part information

325-010 Series

10 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
