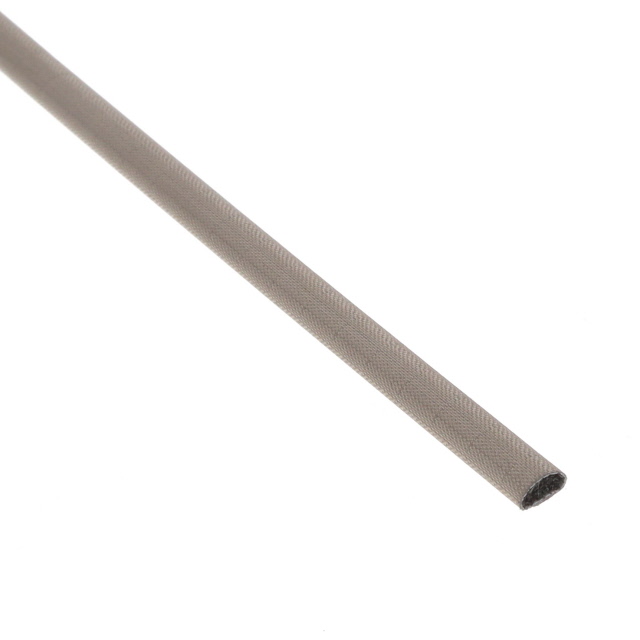

77-1K-3648-02400

Active

Parker Chomerics

RFI FOF GASKET NI/CU ADH

Search across all available documentation for this part.

Active

Parker Chomerics

RFI FOF GASKET NI/CU ADH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	77-1K-3648-02400	77-1K Series

Attachment Method	Adhesive	Adhesive
Height [z]	0.09 in	0.09 - 0.177 in
Height [z]	2.29 mm	2.29 - 4.5 mm
Length [x]	24 in	24 in
Length [x]	609.6 mm	609.6 mm
Material	Nickel-Copper Ripstop over Urathane Foam	Nickel-Copper Ripstop over Urathane Foam
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shape	D-Shape	D-Shape, Rectangle
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Shipment	Date of Shipment
Storage/Refrigeration Temperature	70 °F	70 °F
Storage/Refrigeration Temperature	21 °C	21 °C
Type	Fabric Over Foam	Fabric Over Foam
Width	-	0.393 in
Width	-	9.98 mm
Width [x]	0.15 in	0.15 in
Width [x]	3.81 mm	3.81 mm

RFI FOF GASKET NI/CU ADH

Part	Shelf Life Start	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Type	Shelf Life	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Height [z]	Height [z]	Shape	Material	Width [y]	Width [y]	Attachment Method	Width [x]	Width [x]
Parker Chomerics 77-1K-3631-02400	Date of Shipment	-40 °C	70 °C	24 in	609.6 mm	Fabric Over Foam	24 Months	70 °F	21 °C	0.177 in	4.5 mm	D-Shape	Nickel-Copper Ripstop over Urathane Foam	0.393 in	9.98 mm	Adhesive
Parker Chomerics 77-1K-3648-02400	Date of Shipment	-40 °C	70 °C	24 in	609.6 mm	Fabric Over Foam	24 Months	70 °F	21 °C	0.09 in	2.29 mm	D-Shape	Nickel-Copper Ripstop over Urathane Foam			Adhesive	0.15 in	3.81 mm
Parker Chomerics 77-1K-3173-02400	Date of Shipment	-40 °C	70 °C	24 in	609.6 mm	Fabric Over Foam	24 Months	70 °F	21 °C	0.125 "	3.18 mm	Rectangle	Nickel-Copper Ripstop over Urathane Foam			Adhesive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
