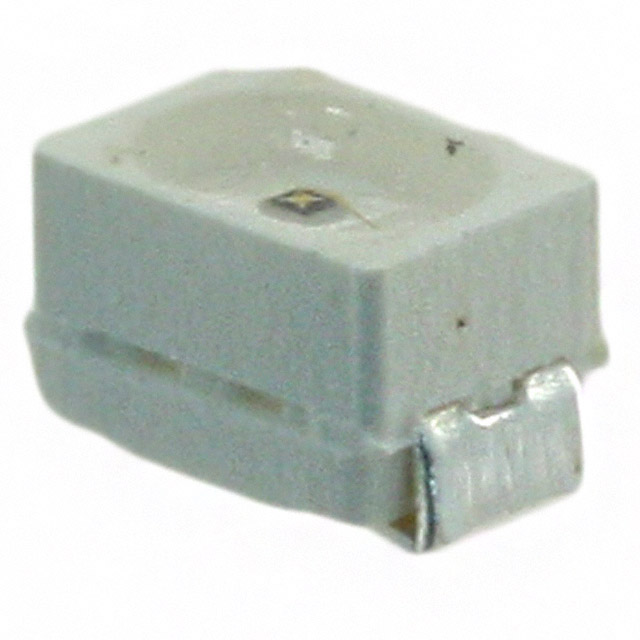

AA2214SYSK

Active

Kingbright

LED YELLOW CLEAR SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AA2214SYSK

Active

Kingbright

LED YELLOW CLEAR SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA2214SYSK	AA2214 Series

Color	Yellow	Green, Blue, Red, Yellow
Configuration	Standard	Independent, Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	1.4 mm	1.4 mm
Lens Color	Colorless	Colorless
Lens Size [x]	1.65 mm	1.65 mm
Lens Size [y]	1.15 mm	1.15 mm
Lens Style	Oval with Flat Top	Oval with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	250 mcd	70 - 1300 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-SMD, J-Lead	2-SMD, J-Lead
Supplier Device Package	SMD	SMD, 2-SMD
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	2 V	1.95 - 3.3 V
Wavelength - Dominant	590 nm	465 - 630 nm
Wavelength - Peak	590 nm	460 - 645 nm

AA2214 Series

LED GREEN CLEAR SMD

Part	Configuration	Supplier Device Package	Lens Color	Millicandela Rating	Color	Lens Size [x]	Lens Size [y]	Height (Max) [Max] [z]	Wavelength - Dominant	Mounting Type	Package / Case	Lens Transparency	Voltage - Forward (Vf) (Typ)	Lens Style	Current - Test	Viewing Angle	Wavelength - Peak
Kingbright AA2214CGSK	Independent	SMD	Colorless	70 mcd	Green	1.65 mm	1.15 mm	1.4 mm	570 nm	Surface Mount	2-SMD, J-Lead	Clear	2.1 V	Oval with Flat Top	20 mA	120 °
Kingbright AA2214SESK	Standard	SMD	Colorless	180 mcd		1.65 mm	1.15 mm	1.4 mm	601 nm	Surface Mount	2-SMD, J-Lead	Clear	2.1 V	Oval with Flat Top	20 mA	120 °	610 nm
Kingbright AA2214VRBXS/A-TR-AMT	Standard	SMD	Colorless	1300 mcd	Blue	1.65 mm	1.15 mm	1.4 mm		Surface Mount	2-SMD, J-Lead	Clear	3.3 V	Oval with Flat Top	20 mA	120 °
Kingbright AA2214SURSK	Standard	SMD	Colorless	100 mcd	Red	1.65 mm	1.15 mm	1.4 mm	630 nm	Surface Mount	2-SMD, J-Lead	Clear	1.95 V	Oval with Flat Top	20 mA	120 °	645 nm
Kingbright AA2214SYSK	Standard	SMD	Colorless	250 mcd	Yellow	1.65 mm	1.15 mm	1.4 mm	590 nm	Surface Mount	2-SMD, J-Lead	Clear	2 V	Oval with Flat Top	20 mA	120 °	590 nm
Kingbright AA2214ZGSK	Independent	2-SMD	Colorless	650 mcd	Green	1.65 mm	1.15 mm	1.4 mm	525 nm	Surface Mount	2-SMD, J-Lead	Clear	3.3 V	Oval with Flat Top	20 mA	120 °	515 nm
Kingbright AA2214SES/J4	Standard	SMD	Colorless	700 mcd		1.65 mm	1.15 mm	1.4 mm	605 nm	Surface Mount	2-SMD, J-Lead	Clear	2.2 V	Oval with Flat Top	20 mA	120 °	611 nm
Kingbright AA2214ZGS	Standard	SMD	Colorless	700 mcd	Green	1.65 mm	1.15 mm	1.4 mm	525 nm	Surface Mount	2-SMD, J-Lead	Clear	3.3 V	Oval with Flat Top	20 mA	120 °	515 nm
Kingbright AA2214QBS/D	Standard	SMD	Colorless	150 mcd	Blue	1.65 mm	1.15 mm	1.4 mm	465 nm	Surface Mount	2-SMD, J-Lead	Clear	3.3 V	Oval with Flat Top	20 mA	120 °	460 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.62
		10	$ 0.41
		100	$ 0.27
		1000	$ 0.21
	Digi-Reel®	1	$ 0.62
		10	$ 0.41
		100	$ 0.27
		1000	$ 0.21
	Tape & Reel (TR)	2000	$ 0.15

Description

General part information

AA2214 Series

Yellow 590nm LED Indication - Discrete 2V 2-SMD, J-Lead
