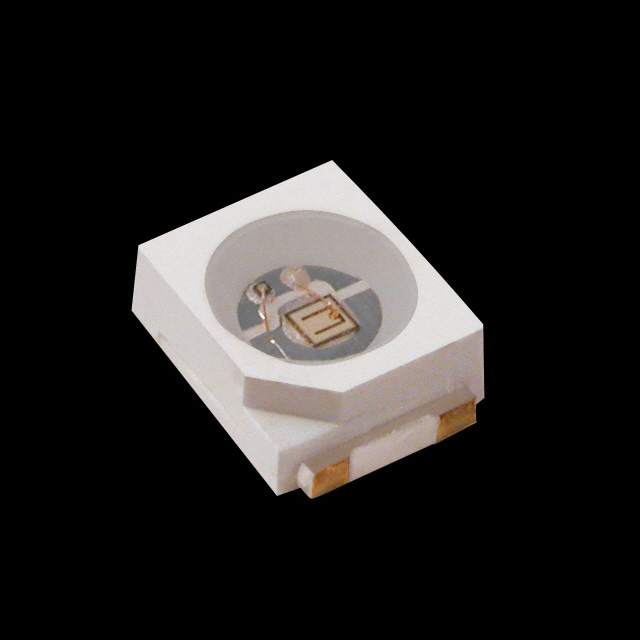

AA3529SES/L

Active

Kingbright

LED AA3529 ORANGE 618NM SMD

Search across all available documentation for this part.

Active

Kingbright

LED AA3529 ORANGE 618NM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA3529SES/L	AA3529 Series

Color	-	Yellow
Current - Max [Max]	150 mA	150 mA
Current - Test	150 mA	150 mA
Height - Seated (Max) [Max]	0.061 in	0.061 in
Height - Seated (Max) [Max]	1.55 mm	1.55 mm
Lumens/Watt @ Current - Test	7 lm/W	7 - 11 lm/W
Luminous Flux @ Current/Temperature	4 lm	4 - 6 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-PLCC	2-PLCC
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	0.11 in	0.11 in
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	SMD	SMD
Thermal Resistance of Package	-	90 °C/W
Thermal Resistance of Package [custom]	80 °C/W	80 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	3.6 V	3.6 V
Wavelength	618 nm	590 - 618 nm

LED AA3529 YELLOW 590NM SMD

Part	Viewing Angle	Supplier Device Package	Lumens/Watt @ Current - Test	Color	Mounting Type	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Thermal Resistance of Package [custom]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Test	Current - Max [Max]	Wavelength	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Thermal Resistance of Package [custom]
Kingbright AA3529SYS/L	120 °	SMD	11 lm/W	Yellow	Surface Mount	3.6 V	6 lm	90 °C/W	3.2 mm	0.126 in	0.11 in	2.8 mm	150 mA	150 mA	590 nm	0.061 in	1.55 mm	2-PLCC
Kingbright AA3529SES/L	120 °	SMD	7 lm/W		Surface Mount	3.6 V	4 lm		3.2 mm	0.126 in	0.11 in	2.8 mm	150 mA	150 mA	618 nm	0.061 in	1.55 mm	2-PLCC	80 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color AA3529 Orange 618nm (Typ) 2-PLCC
