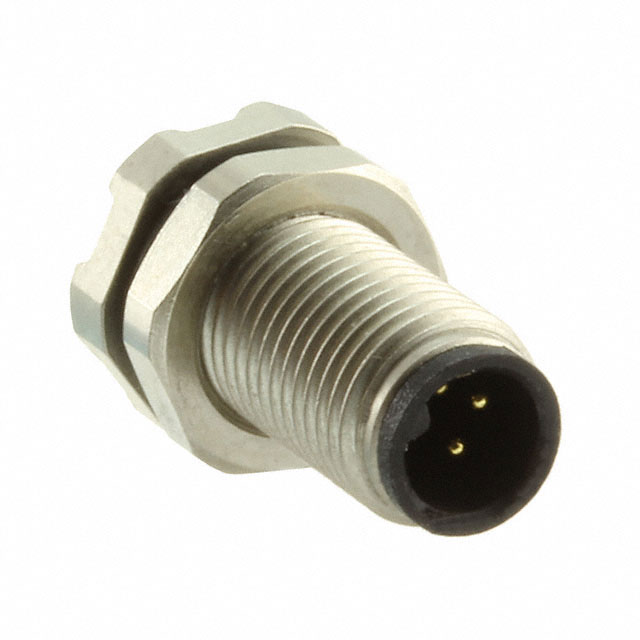

851-003-103R004

Active

MH Connectors

CONN RCPT MALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

MH Connectors

CONN RCPT MALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	851-003-103R004

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M5-3
Shielding	Shielded
Voltage Rating	60 VDC

Part	Orientation	Color	Shell Finish	Shell Size - Insert	Voltage Rating	Contact Finish - Mating	Mounting Feature	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Shielding	Shell Material	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Material Flammability Rating	Contact Material	Contact Finish Thickness - Mating
MH Connectors 851-003-203R004	Keyed	Silver	Nickel	M5-3	60 VDC	Gold	Bulkhead - Rear Side Nut	Female Sockets Plug	85 °C	-40 °C	Metal	Shielded	Brass	IP67 - Dust Tight Waterproof	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	UL94 V-0	Brass
MH Connectors 851-003-103R004	Keyed	Silver	Nickel	M5-3	60 VDC	Gold	Bulkhead - Front Side Nut	Male Pins Receptacle	85 °C	-40 °C	Metal	Shielded	Brass	IP67 - Dust Tight Waterproof	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	UL94 V-0	Brass
MH Connectors 851-003-203R001	Keyed	Silver	Nickel	M5-3	60 VDC	Gold	Bulkhead - Rear Side Nut	Female Sockets Plug	85 °C	-40 °C	Metal	Shielded	Brass	IP67 - Dust Tight Waterproof			Polybutylene Terephthalate (PBT)	UL94 V-0	Brass	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 7.64

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
