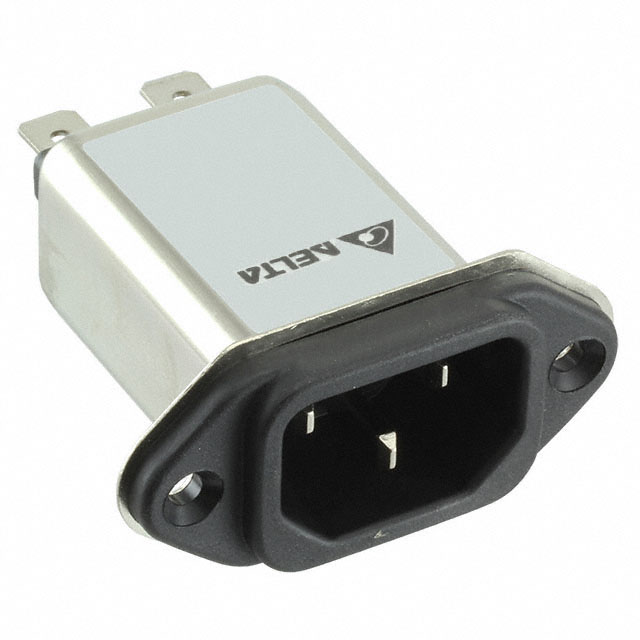

10GEEG3QM

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	270	$ 4.72

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	10GEEG3QM	10GEEG Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A	10 A
Current Rating - Filter	10 A	10 A
Features	-	Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm	28.45 mm
Panel Cutout Dimensions [y]	21.6 mm	21.6 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Mounting Type	Current Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Filter Type	Connector Type	Connector Style	Approval Agency	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Filter	Features
Delta Electronics 10GEEG3E	Flange, Panel Mount	10 A	21.6 mm	28.45 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Male Blades, Receptacle	IEC 320-C14	CSA, UL, VDE	115 VAC	250 VAC	10 A
Delta Electronics 10GEEG3E-R	Flange, Panel Mount	10 A	21.6 mm	28.45 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Male Blades, Receptacle	IEC 320-C14	CSA, UL, VDE	115 VAC	250 VAC	10 A	Bleed Resistor
Delta Electronics 10GEEG3QM	Flange, Panel Mount	10 A	21.6 mm	28.45 mm	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	Male Blades, Receptacle	IEC 320-C14	CSA, UL, VDE	115 VAC	250 VAC	10 A
Delta Electronics 10GEEG3EM	Flange, Panel Mount	10 A	21.6 mm	28.45 mm	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	Male Blades, Receptacle	IEC 320-C14	CSA, UL, VDE	115 VAC	250 VAC	10 A
