CA05P-5

Active

XP Power

HIGH VOLTAGE DC/DC CONVERTER, REGULATED, POSITIVE OUTPUT, FIXED, ADJUSTABLE, 1 W, 2 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Certificate of Conformity EN +1

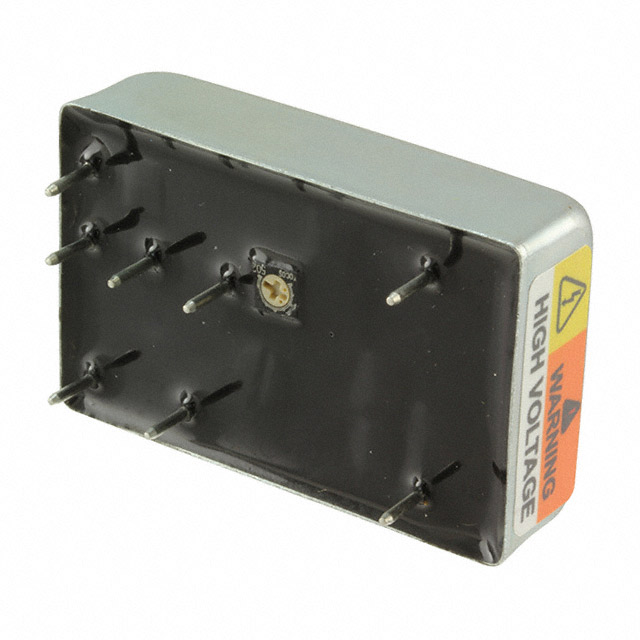

CA05P-5

Active

XP Power

HIGH VOLTAGE DC/DC CONVERTER, REGULATED, POSITIVE OUTPUT, FIXED, ADJUSTABLE, 1 W, 2 MA

Deep-Dive with AI

DocumentsDatasheet Certificate of Conformity EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CA05P-5

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2 mA
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Package / Case	8-DIP Module
Size / Dimension [x]	44.5 mm
Size / Dimension [x]	1.75 "
Size / Dimension [y]	1.1 in
Size / Dimension [y]	27.9 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Standard Number	62368-1
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	5.25 V
Voltage - Input (Min) [Min]	4.75 V
Voltage - Output 1	500 V

CA05P Series

HIGH VOLTAGE DC/DC CONVERTER, REGULATED, POSITIVE OUTPUT, FIXED, ADJUSTABLE, 1 W, 2 MA

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Applications	Mounting Type	Number of Outputs	Type	Standard Number	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Features	Voltage - Input (Min) [Min]	Voltage - Output 1	Package / Case
XP Power CA05P-5	44.5 mm	1.1 in	1.75 "	0.5 in	12.7 mm	27.9 mm	ITE (Commercial)	Through Hole	1	High Voltage - Non-Isolated Module	62368-1	-10 °C	50 °C	2 mA	5.25 V	SCP	4.75 V	500 V	8-DIP Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 280.51
		5	$ 276.30
		10	$ 272.09
		25	$ 263.68
		100	$ 255.26
Newark	Each	1	$ 280.51
		5	$ 276.30
		10	$ 272.09
		25	$ 263.68
		100	$ 255.26

Description

General part information

CA05P Series

CA series high performance, precision regulated, high voltage DC to DC converters are fully programmable (0 to 100%). A quasi-sinewave oscillator, internal transformer shielding and an isolated steel case reduce EMI/RFI radiation to extremely low levels. Typical applications include photomultiplier tubes, avalanche photodiodes, solid state detectors, electrophoresis, EO lenses, piezo devices, capacitor charging and other applications requiring precision low noise and high voltage.
