LT8490EUKJ#TRPBF
ActiveHIGH VOLTAGE, HIGH CURRENT BUCK-BOOST BATTERY CHARGE CONTROLLER WITH MAXIMUM POWER POINT TRACKING (MPPT)
Deep-Dive with AI
Search across all available documentation for this part.
LT8490EUKJ#TRPBF
ActiveHIGH VOLTAGE, HIGH CURRENT BUCK-BOOST BATTERY CHARGE CONTROLLER WITH MAXIMUM POWER POINT TRACKING (MPPT)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LT8490EUKJ#TRPBF |
|---|---|
| Battery Chemistry | Multi-Chemistry |
| Current - Charging | Constant |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

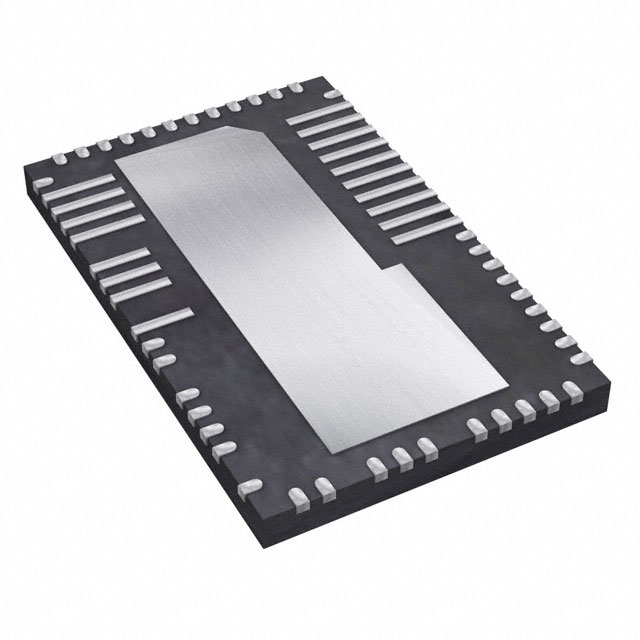

| Package / Case | 64-WFQFN Exposed Pad |
| Supplier Device Package | 64-QFN |
| Supplier Device Package [x] | 7 |
| Supplier Device Package [y] | 11 |
| Voltage - Supply (Max) [Max] | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 27.08 | |
| 10 | $ 20.08 | |||
| 25 | $ 18.29 | |||
| 100 | $ 16.29 | |||
| 250 | $ 15.32 | |||
| 500 | $ 15.31 | |||
| Digi-Reel® | 1 | $ 27.08 | ||
| 10 | $ 20.08 | |||
| 25 | $ 18.29 | |||
| 100 | $ 16.29 | |||
| 250 | $ 15.32 | |||
| 500 | $ 15.31 | |||
| Tape & Reel (TR) | 2000 | $ 15.31 | ||
Description
General part information
LT8490 Series
The LT8490 is a buck-boost switching regulator battery charger that implements a constant-current constantvoltage (CCCV) charging profile used for most battery types, including sealed lead-acid (SLA), flooded, gel and lithium-ion. The device operates from input voltages above, below or equal to the output voltage and can be powered by a solar panel or a DC power supply. On-chip logic provides automatic maximum power point tracking (MPPT) for solar powered applications. The LT8490 can perform automatic temperature compensation by sensing an external thermistor thermally coupled to the battery. STATUS and FAULT pins containing charger information can be used to drive LED indicator lamps. The device is available in a low profile (0.75mm) 7mm × 11mm 64-lead QFN package.ApplicationsSolar Powered Battery ChargersMultiple Types of Lead-Acid Battery ChargingLi-Ion Battery ChargerBattery Equipped Industrial or Portable Military Equipment
