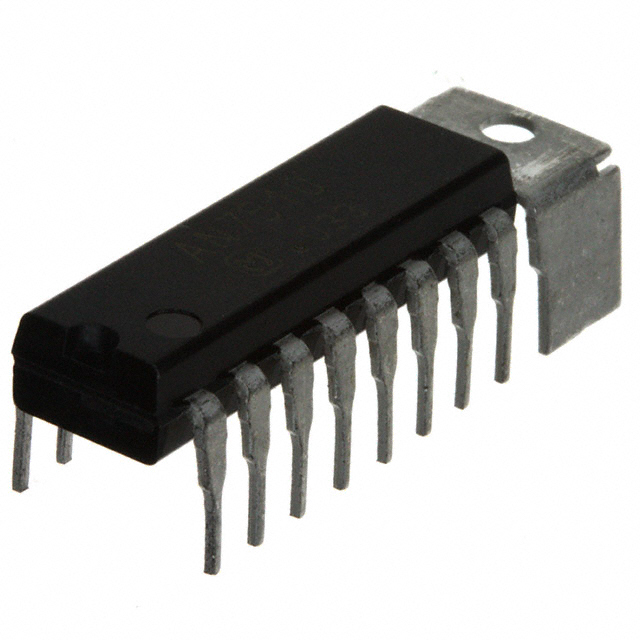

AN7510

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB STER 1.1W 16DIP

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB STER 1.1W 16DIP

Technical Specifications

Parameters and characteristics for this part

Specification	AN7510

Features	Mute, Thermal Protection, Standby, Volume Control
Max Output Power x Channels @ Load	1.1 W
Max Output Power x Channels @ Load [custom]	2
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	2-Channel (Stereo)
Package / Case	0.3 in
Package / Case	16-DIP, + Ground Tab
Package / Case	7.62 mm
Supplier Device Package	16-DIP
Type	Class AB
Voltage - Supply [Max]	13.5 V
Voltage - Supply [Min]	3.5 V

Part	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output Type	Type	Package / Case	Package / Case	Package / Case	Mounting Type
Panasonic Industrial Automation Sales AN7510	1.1 W	2	13.5 V	3.5 V	Mute Standby Thermal Protection Volume Control	70 °C	-25 °C	16-DIP	2-Channel (Stereo)	Class AB	0.3 in	+ Ground Tab 16-DIP	7.62 mm	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class AB 16-DIP
