1241.1104.2093
ActiveSCHURTER Inc.

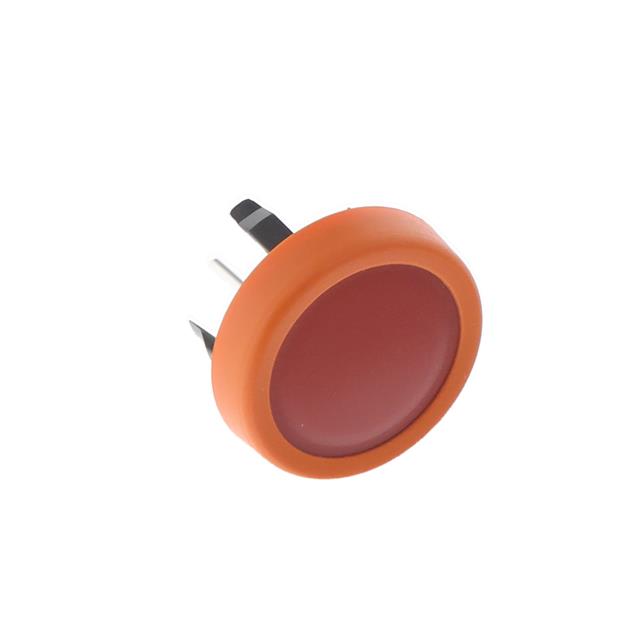

SWITCH PUSH SPST-NO 125MA 48V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.1104.2093
ActiveSCHURTER Inc.
SWITCH PUSH SPST-NO 125MA 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.1104.2093 | 1241.1104 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPST-NO | SPST-NO |
| Color - Actuator/Cap | Red | Black, White, Red, Yellow |
| Current Rating (Amps) | 125 mA | 125 mA |
| Electrical Life | 1000000 Cycles | 1000000 Cycles |
| Features | Tactile Feedback | Tactile Feedback |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles | 1000000 Cycles |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 13 mm | 13 mm |
| Switch Function | Off-Mom | Off-Mom |
| Termination Style | Solder Lug | Solder Lug |
| Type | Standard | Standard |
| Voltage Rating - DC | 48 V | 48 V |
1241.1104 Series
SWITCH PUSH SPST-NO 125MA 48V
| Part | Actuator Marking | Voltage Rating - DC | Features | Termination Style | Switch Function | Actuator Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Electrical Life | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Type | Current Rating (Amps) | Mechanical Life | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.1104.7097 | No Marking | 48 V | Tactile Feedback | Solder Lug | Off-Mom | Button, Flush, Round | Panel Mount, Snap-In | -25 °C | 60 °C | SPST-NO | 1000000 Cycles | 13 mm | Black | Standard | 125 mA | 1000000 Cycles | IP65 - Dust Tight, Water Resistant |
SCHURTER Inc. 1241.1104.8098 | No Marking | 48 V | Tactile Feedback | Solder Lug | Off-Mom | Button, Flush, Round | Panel Mount, Snap-In | -25 °C | 60 °C | SPST-NO | 1000000 Cycles | 13 mm | White | Standard | 125 mA | 1000000 Cycles | IP65 - Dust Tight, Water Resistant |
SCHURTER Inc. 1241.1104.7059 | No Marking | 48 V | Tactile Feedback | Solder Lug | Off-Mom | Button, Flush, Round | Panel Mount, Snap-In | -25 °C | 60 °C | SPST-NO | 1000000 Cycles | 13 mm | Standard | 125 mA | 1000000 Cycles | IP65 - Dust Tight, Water Resistant | |
SCHURTER Inc. 1241.1104.2093 | No Marking | 48 V | Tactile Feedback | Solder Lug | Off-Mom | Button, Flush, Round | Panel Mount, Snap-In | -25 °C | 60 °C | SPST-NO | 1000000 Cycles | 13 mm | Red | Standard | 125 mA | 1000000 Cycles | IP65 - Dust Tight, Water Resistant |
SCHURTER Inc. 1241.1104.7091 | No Marking | 48 V | Tactile Feedback | Solder Lug | Off-Mom | Button, Flush, Round | Panel Mount, Snap-In | -25 °C | 60 °C | SPST-NO | 1000000 Cycles | 13 mm | Yellow | Standard | 125 mA | 1000000 Cycles | IP65 - Dust Tight, Water Resistant |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.73 | |
| 50 | $ 7.48 | |||
| 100 | $ 5.76 | |||
| 500 | $ 5.50 | |||
Description
General part information
1241.1104 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
Documents
Technical documentation and resources
