1241.1104.7091

Active

SCHURTER Inc.

MOMENTARY ACTION DATA SWITCHES

Search across all available documentation for this part.

Active

SCHURTER Inc.

MOMENTARY ACTION DATA SWITCHES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

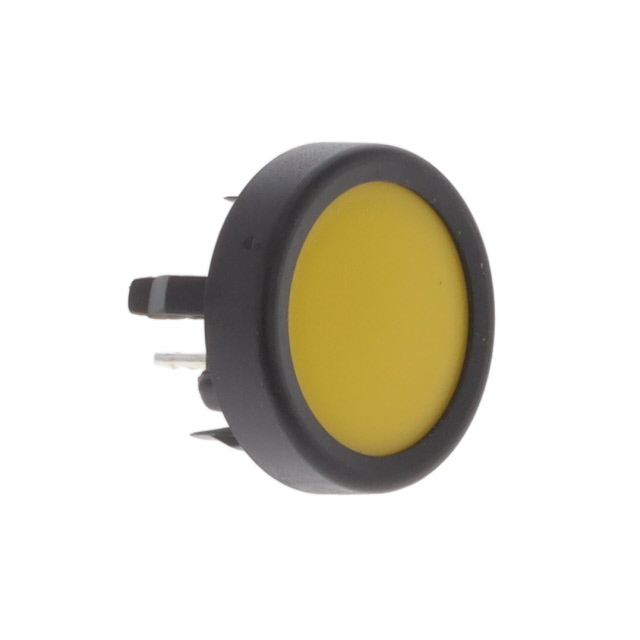

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1241.1104.7091	1241.1104 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Yellow	Black, White, Red, Yellow
Current Rating (Amps)	125 mA	125 mA
Electrical Life	1000000 Cycles	1000000 Cycles
Features	Tactile Feedback	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	13 mm	13 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Solder Lug	Solder Lug
Type	Standard	Standard
Voltage Rating - DC	48 V	48 V

SWITCH PUSH SPST-NO 125MA 48V

Part	Actuator Marking	Voltage Rating - DC	Features	Termination Style	Switch Function	Actuator Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Electrical Life	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Type	Current Rating (Amps)	Mechanical Life	Ingress Protection
SCHURTER Inc. 1241.1104.7097	No Marking	48 V	Tactile Feedback	Solder Lug	Off-Mom	Button, Flush, Round	Panel Mount, Snap-In	-25 °C	60 °C	SPST-NO	1000000 Cycles	13 mm	Black	Standard	125 mA	1000000 Cycles	IP65 - Dust Tight, Water Resistant
SCHURTER Inc. 1241.1104.8098	No Marking	48 V	Tactile Feedback	Solder Lug	Off-Mom	Button, Flush, Round	Panel Mount, Snap-In	-25 °C	60 °C	SPST-NO	1000000 Cycles	13 mm	White	Standard	125 mA	1000000 Cycles	IP65 - Dust Tight, Water Resistant
SCHURTER Inc. 1241.1104.7059	No Marking	48 V	Tactile Feedback	Solder Lug	Off-Mom	Button, Flush, Round	Panel Mount, Snap-In	-25 °C	60 °C	SPST-NO	1000000 Cycles	13 mm		Standard	125 mA	1000000 Cycles	IP65 - Dust Tight, Water Resistant
SCHURTER Inc. 1241.1104.2093	No Marking	48 V	Tactile Feedback	Solder Lug	Off-Mom	Button, Flush, Round	Panel Mount, Snap-In	-25 °C	60 °C	SPST-NO	1000000 Cycles	13 mm	Red	Standard	125 mA	1000000 Cycles	IP65 - Dust Tight, Water Resistant
SCHURTER Inc. 1241.1104.7091	No Marking	48 V	Tactile Feedback	Solder Lug	Off-Mom	Button, Flush, Round	Panel Mount, Snap-In	-25 °C	60 °C	SPST-NO	1000000 Cycles	13 mm	Yellow	Standard	125 mA	1000000 Cycles	IP65 - Dust Tight, Water Resistant
