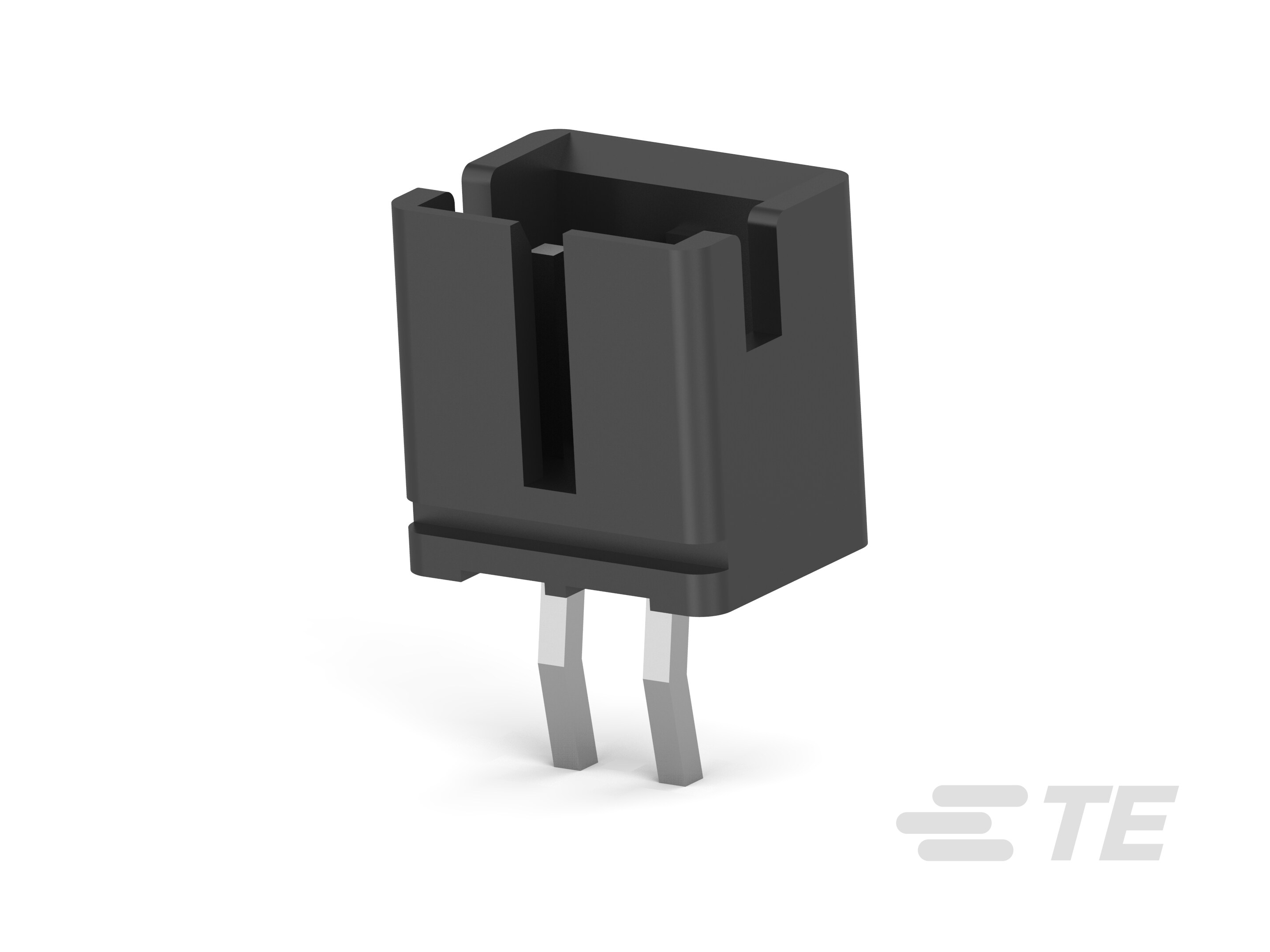

Specification	6-440054-2

Applications	Medical, General Purpose, Industrial, Automotive
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	80 µin
Contact Finish Thickness - Post	80 µin
Contact Length - Mating	0.132 in
Contact Length - Post	0.134 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Insulation Color	Black
Insulation Height	0.238 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Overall Contact Length	0.335 in
Pitch - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Press-Fit, Solder
Voltage Rating	250 V

440054 Series

Part	Contact Length - Post	Contact Material	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Number of Rows	Contact Finish - Mating	Mounting Type	Overall Contact Length	Style	Connector Type	Contact Finish - Post	Number of Positions	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Pitch - Mating	Insulation Material	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Type	Voltage Rating	Shrouding	Insulation Color	Contact Shape	Contact Finish Thickness - Post	Applications	Number of Positions Loaded
TE Connectivity AMP Connectors 9-440054-5	0.134 in	Brass	0.238 in	UL94 V-0	3	1	Tin	Through Hole	0.335 in	Board Cable/Wire	Header	Tin	4	Press-Fit Solder	85 °C	-25 °C	3 A	0.079 in	Nylon 6/6 Polyamide (PA66)	80 µin	0.132 in	Male Pin	250 V	Shrouded - 4 Wall	Natural	Square	80 µin	Automotive General Purpose Industrial Medical

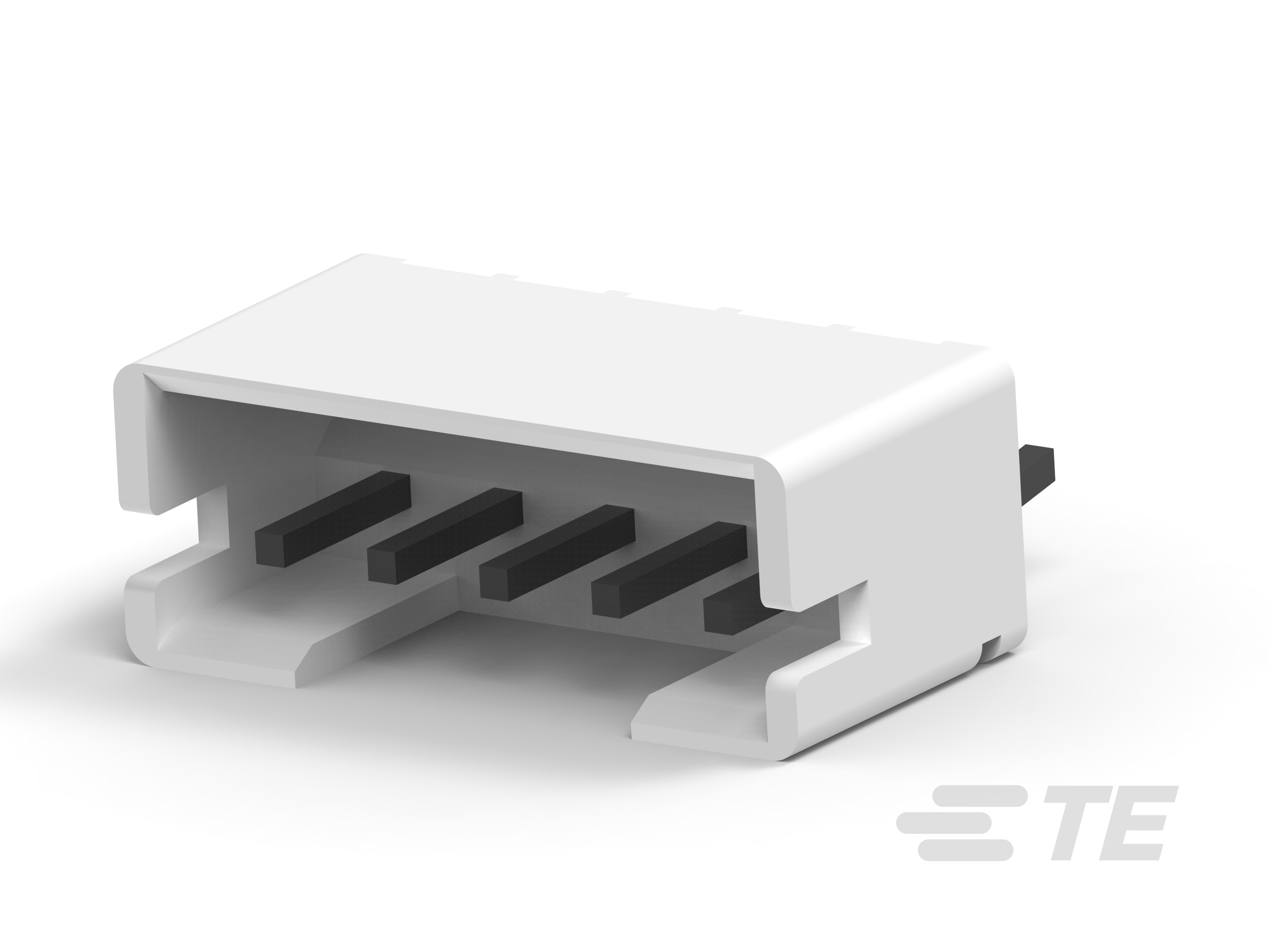

TE Connectivity AMP Connectors 440054-5	0.134 in	Brass	0.238 in	UL94 V-0		1	Tin	Through Hole	0.335 in	Board Cable/Wire	Header	Tin	5	Press-Fit Solder	85 °C	-25 °C	3 A	0.079 in	Nylon 6/6 Polyamide (PA66)	80 µin	0.132 in	Male Pin	250 V	Shrouded - 4 Wall	Natural	Square	80 µin	Automotive General Purpose Industrial Medical	All
TE Connectivity AMP Connectors 6-440054-4	0.134 in	Brass	0.238 in	UL94 V-0		1	Tin	Through Hole	0.335 in	Board Cable/Wire	Header	Tin	4	Press-Fit Solder	85 °C	-25 °C	3 A	0.079 in	Nylon 6/6 Polyamide (PA66)	80 µin	0.132 in	Male Pin	250 V	Shrouded - 4 Wall	Black	Square	80 µin	Automotive General Purpose Industrial Medical	All
TE Connectivity AMP Connectors 6-440054-2	0.134 in	Brass	0.238 in	UL94 V-0		1	Tin	Through Hole	0.335 in	Board Cable/Wire	Header	Tin	2	Press-Fit Solder	85 °C	-25 °C	3 A	0.079 in	Nylon 6/6 Polyamide (PA66)	80 µin	0.132 in	Male Pin	250 V	Shrouded - 4 Wall	Black	Square	80 µin	Automotive General Purpose Industrial Medical	All

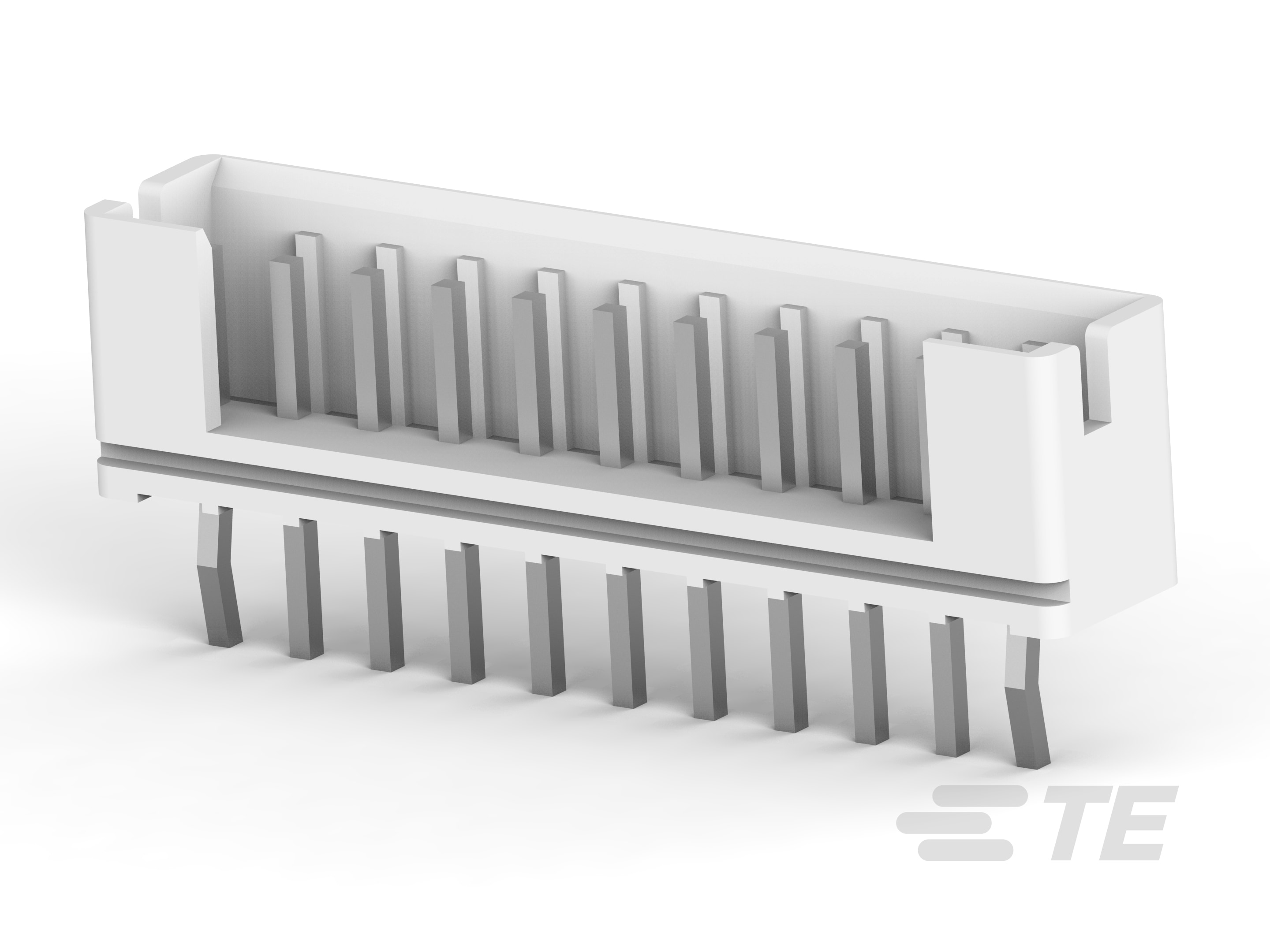

TE Connectivity AMP Connectors 1-440054-1	0.134 in	Brass	0.238 in	UL94 V-0		1	Tin	Through Hole	0.335 in	Board Cable/Wire	Header	Tin	11	Press-Fit Solder	85 °C	-25 °C	3 A	0.079 in	Nylon 6/6 Polyamide (PA66)	80 µin	0.132 in	Male Pin	250 V	Shrouded - 4 Wall	Natural	Square	80 µin	Automotive General Purpose Industrial Medical	All
TE Connectivity AMP Connectors 1-440054-6	0.134 in	Brass	0.238 in	UL94 V-0		1	Tin	Through Hole	0.335 in	Board Cable/Wire	Header	Tin	16	Press-Fit Solder	85 °C	-25 °C	3 A	0.079 in	Nylon 6/6 Polyamide (PA66)	80 µin	0.132 in	Male Pin	250 V	Shrouded - 4 Wall	Natural	Square	80 µin	Automotive General Purpose Industrial Medical	All
TE Connectivity AMP Connectors 2-440054-4	0.134 in	Brass	0.238 in	UL94 V-0		1	Tin	Through Hole	0.335 in	Board Cable/Wire	Header	Tin	4	Press-Fit Solder	85 °C	-25 °C	3 A	0.079 in	Nylon 6/6 Polyamide (PA66)	80 µin	0.132 in	Male Pin	250 V	Shrouded - 4 Wall	Blue	Square	80 µin	Automotive General Purpose Industrial Medical	All
TE Connectivity AMP Connectors 440054-7	0.134 in	Brass	0.238 in	UL94 V-0		1	Tin	Through Hole	0.335 in	Board Cable/Wire	Header	Tin	7	Press-Fit Solder	85 °C	-25 °C	3 A	0.079 in	Nylon 6/6 Polyamide (PA66)	80 µin	0.132 in	Male Pin	250 V	Shrouded - 4 Wall	Natural	Square	80 µin	Automotive General Purpose Industrial Medical	All
TE Connectivity AMP Connectors 440054-4	0.134 in	Brass	0.238 in	UL94 V-0		1	Tin	Through Hole	0.335 in	Board Cable/Wire	Header	Tin	4	Press-Fit Solder	85 °C	-25 °C	3 A	0.079 in	Nylon 6/6 Polyamide (PA66)	80 µin	0.132 in	Male Pin	250 V	Shrouded - 4 Wall	Natural	Square	80 µin	Automotive General Purpose Industrial Medical	All
TE Connectivity AMP Connectors 8-440054-4	0.134 in	Brass	0.238 in	UL94 V-0		1	Tin	Through Hole	0.335 in	Board Cable/Wire	Header	Tin	4	Press-Fit Solder	85 °C	-25 °C	3 A	0.079 in	Nylon 6/6 Polyamide (PA66)	80 µin	0.132 in	Male Pin	250 V	Shrouded - 4 Wall	Red	Square	80 µin	Automotive General Purpose Industrial Medical	All
