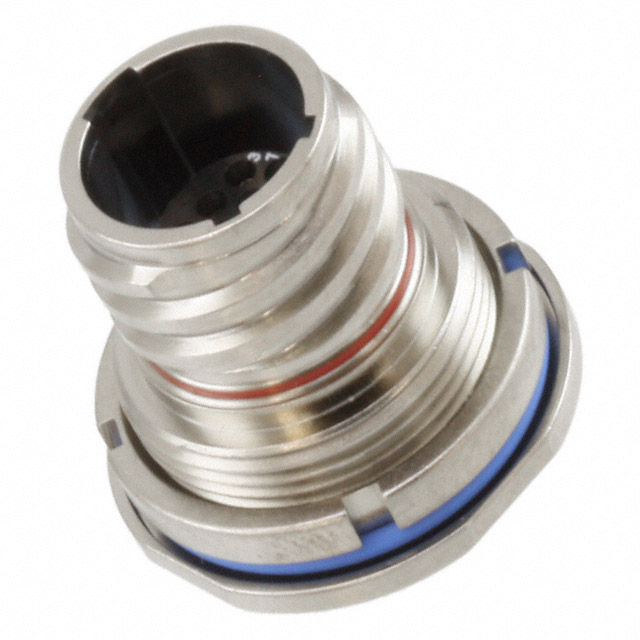

MKJ5C7F9-10DA

Active

ITT Cannon, LLC

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

MKJ5C7F9-10DA

Active

ITT Cannon, LLC

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MKJ5C7F9-10DA

Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	5 A
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Panel Mount
Number of Positions	10
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	10
Shell Size - Insert [Min]	9
Shielding	Shielded
Termination	Solder
Voltage Rating	500 VAC

MKJ5C Series

Part	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Termination	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Shell Material	Color	Primary Material	Voltage Rating	Insert Material	Shielding	Connector Type	Contact Material	Orientation	Applications	Shell Finish	Mounting Feature	Shell Size - Insert	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
ITT Cannon, LLC MKJ5C7F11-19DB	19	11	Solder	5 A	Gold	-55 °C	150 °C	Panel Mount Through Hole	19	Aluminum Alloy	Silver	Metal	500 VAC	Thermoplastic	Shielded	Receptacle Female Sockets	Copper Alloy	B	Aerospace Communication Systems Industrial Instrumentation Medical	Electroless Nickel	Bulkhead - Front Side Nut
ITT Cannon, LLC MKJ5C2F8-4BC			Solder	5 A	Gold	-55 °C	150 °C	Panel Mount Through Hole	4	Aluminum Alloy	Silver	Metal	500 VAC	Thermoplastic	Shielded	Male Pins Receptacle	Copper Alloy	C	Aerospace Communication Systems Industrial Instrumentation Medical	Electroless Nickel	Flange	8-4
ITT Cannon, LLC MKJ5C7F10-13DC	13	10	Solder	5 A	Gold	-55 °C	150 °C	Panel Mount Through Hole	13	Aluminum Alloy	Silver	Metal	500 VAC	Thermoplastic	Shielded	Receptacle Female Sockets	Copper Alloy	C	Aerospace Communication Systems Industrial Instrumentation Medical	Electroless Nickel	Bulkhead - Front Side Nut
ITT Cannon, LLC MKJ5C7W15-37DB			Solder	5 A	Gold	-55 °C	150 °C	Panel Mount Through Hole	37	Aluminum Alloy	Olive Drab	Metal	500 VAC	Thermoplastic	Shielded	Receptacle Female Sockets	Copper Alloy	B	Aerospace Communication Systems Industrial Instrumentation Medical	Olive Drab Cadmium	Bulkhead - Front Side Nut		37	15
ITT Cannon, LLC MKJ5C7W15-37BB			Solder	5 A	Gold	-55 °C	150 °C	Panel Mount Through Hole	37	Aluminum Alloy	Olive Drab	Metal	500 VAC	Thermoplastic	Shielded	Male Pins Receptacle	Copper Alloy	B	Aerospace Communication Systems Industrial Instrumentation Medical	Olive Drab Cadmium	Bulkhead - Front Side Nut		37	15
ITT Cannon, LLC MKJ5C2F8-4DC			Solder	5 A	Gold	-55 °C	150 °C	Panel Mount Through Hole	4	Aluminum Alloy	Silver	Metal	500 VAC	Thermoplastic	Shielded	Receptacle Female Sockets	Copper Alloy	C	Aerospace Communication Systems Industrial Instrumentation Medical	Electroless Nickel	Flange	8-4
ITT Cannon, LLC MKJ5C2F8-7DC	7	8	Solder	5 A	Gold	-55 °C	150 °C	Panel Mount Through Hole	7	Aluminum Alloy	Silver	Metal	500 VAC	Thermoplastic	Shielded	Receptacle Female Sockets	Copper Alloy	C	Aerospace Communication Systems Industrial Instrumentation Medical	Electroless Nickel	Flange
ITT Cannon, LLC MKJ5C7F9-10DA	10	9	Solder	5 A	Gold	-55 °C	150 °C	Panel Mount Through Hole	10	Aluminum Alloy		Metal	500 VAC		Shielded	Receptacle Female Sockets		A		Electroless Nickel	Bulkhead				1.27 µm	50 µin
ITT Cannon, LLC MKJ5C7W15-37BD			Solder	5 A	Gold	-55 °C	150 °C	Panel Mount Through Hole	37	Aluminum Alloy	Olive Drab	Metal	500 VAC	Thermoplastic	Shielded	Male Pins Receptacle	Copper Alloy	D	Aerospace Communication Systems Industrial Instrumentation Medical	Olive Drab Cadmium	Bulkhead - Front Side Nut		37	15
ITT Cannon, LLC MKJ5C7F12-26DC	26	12	Solder	5 A	Gold	-55 °C	150 °C	Panel Mount Through Hole	26	Aluminum Alloy	Silver	Metal	500 VAC	Thermoplastic	Shielded	Receptacle Female Sockets	Copper Alloy	C	Aerospace Communication Systems Industrial Instrumentation Medical	Electroless Nickel	Bulkhead - Front Side Nut
