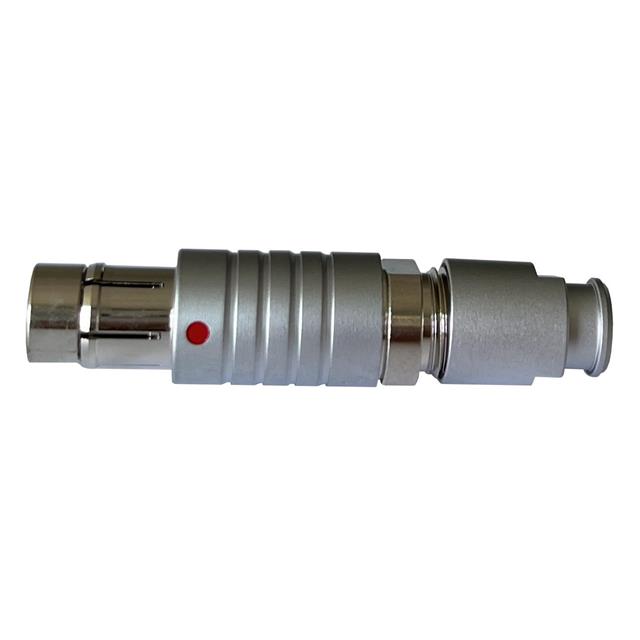

MMI-M0P103S52B-IP68
ActiveAdam Tech
CONN PLUG MALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MMI-M0P103S52B-IP68 |
|---|---|
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 7 A |
| Fastening Type | Push-Pull |
| Features | Strain Relief, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | 1 |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 27.25 | |
| 10 | $ 22.21 | |||
| 30 | $ 20.15 | |||
| 50 | $ 19.26 | |||
| 100 | $ 18.11 | |||
Description
General part information
MMI-M0P Series
3 Position Circular Connector Plug, Male Pins Solder Cup
