WR9QX312T00NACFR6B

Active

GlobTek, Inc.

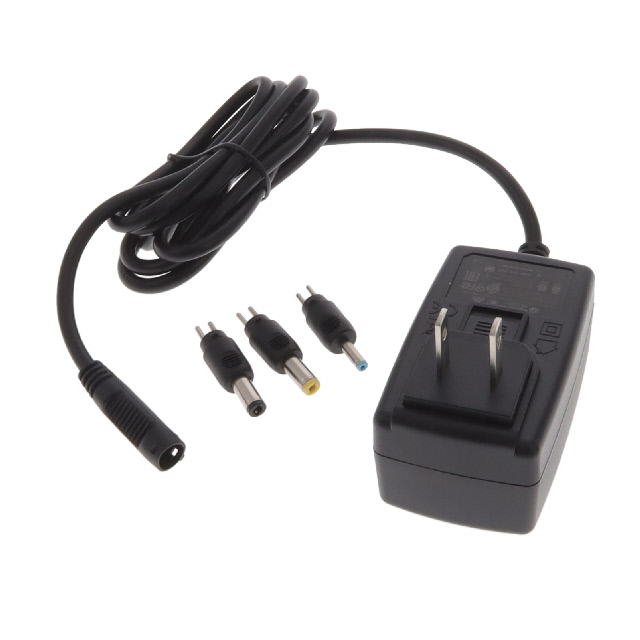

AC/DC WALL MOUNT ADAPTER 48V 15W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 48V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QX312T00NACFR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	UKRSepro, NOM, CCC, ETL, cETLus, LPS, BIS, EAC, UL, CB, S-Mark, VCCI, CE, PSE, RCM
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	310 mA
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade (Included)
Input Type	Multi-Blade (Included)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	15 W
Region Utilized	International
Size / Dimension [x]	74 mm
Size / Dimension [x]	2.91 "
Size / Dimension [y]	43.5 mm
Size / Dimension [y]	1.71 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V

Part	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	No Load Power Consumption [Max]	Region Utilized	Input Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Form	Output Connector	Voltage - Output	Efficiency	Input Connector	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Cord Length	Cord Length	Power (Watts)	Applications
GlobTek, Inc. WR9QX312T00NACFR6B	90 VAC	264 VAC	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	75 mW	International	Multi-Blade (Included)	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	1.3mm x 3.5mm Barrel Plug Kit	48 V	CoC Tier 2 Level VI	Multi-Blade (Included)	310 mA	-20 C	40 °C	60335-1 60601-1 60950-1 62368-1	1.5 m	59 in	15 W	Household Appliances ITE (Commercial) Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.75

General part information

48V 15 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
