RFD-4195-1952

Active

RF Industries

4.1/9.5 MALE-4.1/9.5 FEMALE; R/A

Search across all available documentation for this part.

Active

RF Industries

4.1/9.5 MALE-4.1/9.5 FEMALE; R/A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

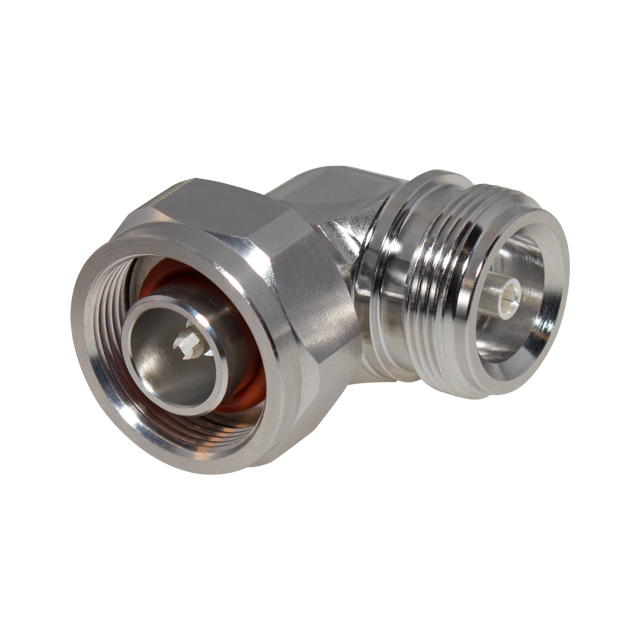

Adapter Coaxial Connector 4.1/9.5 Plug, Male Pin To 4.1/9.5 Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	RFD-4195-1952	RFD-4195 Series

Adapter Series	4.1/9.5 to 4.1/9.5	4.1/9.5 to 4.1/9.5
Adapter Type	Plug to Jack	Jack to Jack, Plug to Jack
Body Finish	White Bronze	White Bronze
Body Material	Brass	Brass
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	Silver	Silver
Center Gender	-	Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	4.1/9.5 Plug, Male Pin	Female Socket, 4.1/9.5 Jack, 4.1/9.5 Plug, Male Pin
Convert To (Adapter End)	4.1/9.5 Jack, Female Socket	4.1/9.5 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz	3 - 6000 MHz
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.08 dB	0.08 dB
Mating Cycles	500	500
Mounting Feature	-	Bulkhead
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Style	Right Angle	Straight, Right Angle

4.1/9.5 FEMALE-4.1/9.5 FEMALE BH

Part	Center Contact Plating	Body Finish	Convert To (Adapter End)	Mating Cycles	Impedance	Center Gender	Mounting Feature	Adapter Type	Center Contact Material	Adapter Series	Frequency - Max [Max]	Body Material	Style	Dielectric Material	Conversion Type	Convert From (Adapter End)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss
RF Industries RFD-4195-1954	Silver	White Bronze	4.1/9.5 Jack, Female Socket	500	50 Ohms	Female to Female	Bulkhead	Jack to Jack	Beryllium Copper	4.1/9.5 to 4.1/9.5	6000 MHz	Brass	Straight	Polytetrafluoroethylene (PTFE)	Same Series	4.1/9.5 Jack, Female Socket
RF Industries RFD-4195-1952	Silver	White Bronze	4.1/9.5 Jack, Female Socket	500	50 Ohms			Plug to Jack	Brass	4.1/9.5 to 4.1/9.5	3 GHz	Brass	Right Angle	Polytetrafluoroethylene (PTFE)	Same Series	4.1/9.5 Plug, Male Pin	Free Hanging (In-Line), Right Angle	155 °C	-55 °C	0.08 dB
