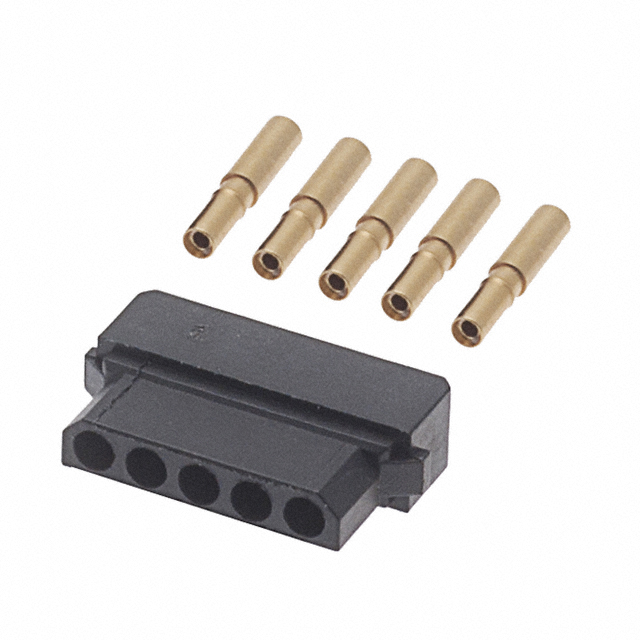

M80-8990505

M80-8990505

Active
Harwin Inc.

HEADER CONNECTOR,CABLE MOUNT,PLUG,5 CONTACTS,SKT,0.079 PITCH ROHS COMPLIANT: YES

Find alt
M80-8990505

M80-8990505

Active
Harwin Inc.

HEADER CONNECTOR,CABLE MOUNT,PLUG,5 CONTACTS,SKT,0.079 PITCH ROHS COMPLIANT: YES

Find alt

Description

General part information

M80-899 Series

5 Position Rectangular Receptacle Connector Crimp Gold 22 AWG

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-8990505
Cable TerminationCrimp
ColorBlack
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness11.8 µin
Contact TypeFemale Socket
Fastening TypeLocking Ramp
Mounting TypeFree Hanging (In-Line)
Number of Positions5
Number of Rows1
Pitch0.079 in
Wire Gauge22 AWG
Wire TypeDiscrete
