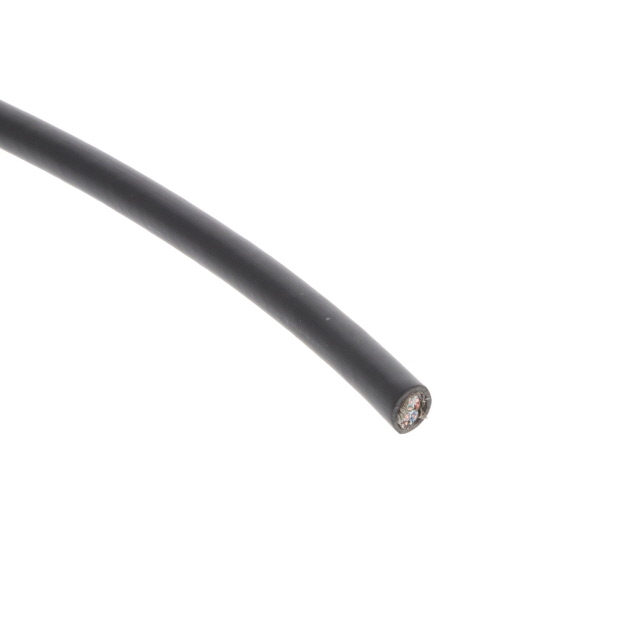

C7X-23A914XK18A-0CK9500

Active

TE Connectivity Raychem Cable Protection

CABLE CAT7 8COND 23AWG BLK 1=1'

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CABLE CAT7 8COND 23AWG BLK 1=1'

Technical Specifications

Parameters and characteristics for this part

Specification	C7X-23A914XK18A-0CK9500

Cable Type	Cat7, Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	8.2 mm
Jacket (Insulation) Diameter [diameter]	0.323 in
Jacket (Insulation) Material	Zerohal™
Jacket (Insulation) Thickness	0.749 mm
Jacket (Insulation) Thickness	0.0295 in
Jacket Color	Black
Length	1640 ft
Length	499.9 m
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Shield Coverage	92 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	23 AWG

Part	Cable Type	Conductor Insulation	Length	Length	Jacket Color	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Shield Coverage	Jacket (Insulation) Material	Number of Conductors	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand	Shield Material
TE Connectivity Raychem Cable Protection C7X-23A914XK18A-0CK9500	Cat7 Multi-Pair	Foam Polyethylene (FPE)	1640 ft	499.9 m	Black	Braid Foil	0.749 mm	0.0295 in	23 AWG	8.2 mm	0.323 in	Copper Bare	92 % 100 %	Zerohal™	8	300 V	-25 °C	75 ░C	Solid	Aluminum Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1640	$ 4.70

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat7 Cable Black 23 AWG Foil, Braid 1640.0' (499.9m)
