ADLD8403ACPZ-R2
ActiveULTRALOW POWER, ADAPTIVE LINEAR POWER, DUAL-PORT ADSL/ADSL2+ LINE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
ADLD8403ACPZ-R2
ActiveULTRALOW POWER, ADAPTIVE LINEAR POWER, DUAL-PORT ADSL/ADSL2+ LINE DRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ADLD8403ACPZ-R2 | ADLD8403 Series |
|---|---|---|
| Mounting Type | Surface Mount | Surface Mount |
| Number of Drivers/Receivers [custom] | 0 | 0 |
| Number of Drivers/Receivers [custom] | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

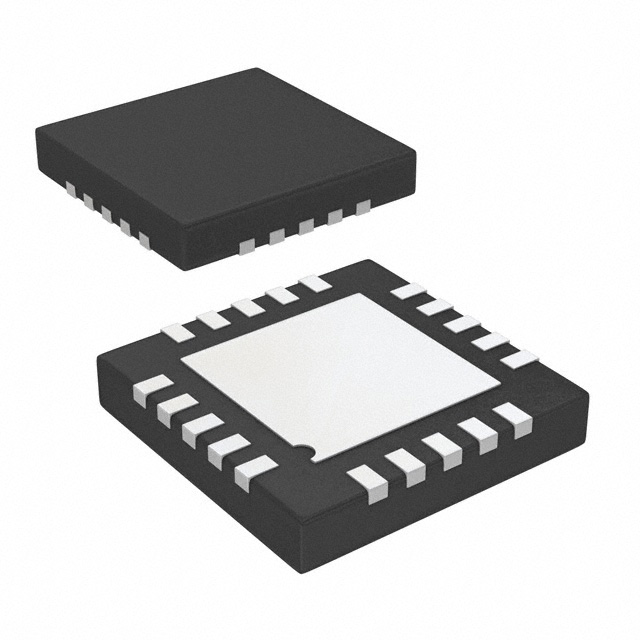

| Package / Case | 20-WFQFN Exposed Pad, CSP | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP (4x4) | 20-LFCSP (4x4) |
| Type | Driver | Driver |
| Voltage - Supply | 12.5 V | 12.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Analog Devices Inc | N/A | 1 | $ 7.98 | |
| 250 | $ 3.74 | |||
| 500 | $ 3.52 | |||
| 1000 | $ 2.43 | |||
| 2500 | $ 3.20 | |||
| DigiKey | Bulk | 82 | $ 3.70 | |
| Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | 1 | $ 7.98 | ||
| 250 | $ 3.34 | |||
| 500 | $ 3.20 | |||
| Digikey | Cut Tape (CT) | 1 | $ 6.15 | |
| Digi-Reel® | 1 | $ 6.15 | ||
| Tape & Reel (TR) | 250 | $ 4.40 | ||
| 500 | $ 4.01 | |||
| 1250 | $ 3.49 | |||
| 2500 | $ 3.36 | |||
| Mouser Electronics | N/A | 250 | $ 3.73 | |
| 500 | $ 3.41 | |||
| 1000 | $ 3.22 | |||
| 2500 | $ 3.20 | |||
| Rochester Electronics | N/A | 1 | $ 3.56 | |
| 25 | $ 3.49 | |||
| 100 | $ 3.35 | |||
| 500 | $ 3.20 | |||
| 1000 | $ 3.03 | |||
ADLD8403 Series
Ultralow Power, Adaptive Linear Power, Dual-Port ADSL/ADSL2+ Line Driver
| Part | Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Supplier Device Package | Voltage - Supply | Mounting Type | Number of Drivers/Receivers [custom] | Number of Drivers/Receivers [custom] |
|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc ADLD8403ACPZ-R2 | Driver | -40 °C | 85 °C | 20-WFQFN Exposed Pad, CSP | 20-LFCSP (4x4) | 12.5 V | Surface Mount | 0 | 2 |
Analog Devices Inc ADLD8403ACPZ-RL | Driver | -40 °C | 85 °C | 20-WFQFN Exposed Pad, CSP | 20-LFCSP (4x4) | 12.5 V | Surface Mount | 0 | 2 |
Description
General part information
ADLD8403 Series
The ADLD8403 comprises two differential, high output current, low power consumption operational amplifiers. It is particularly well suited for the CO driver interface in digital subscriber line systems, such as ADSL and ADSL2+. The driver can deliver 20.4 dBm to a line while compensating for losses due to hybrid insertion and back termination resistors. The ADLD8403 uses the Analog Devices, Inc., second generation Adaptive Linear Power™ (Class H) architecture to achieve unprecedented power efficiency using a single power supply. Additional functionality allows the shutdown of pumps for enhanced power savings for line powers of less than 14.5 dBm. This functionality yields the smallest printed circuit board (PCB) footprint and lowest total cost of ownership.The low power consumption, high output current, high output voltage swing, and robust thermal packaging enable the ADLD8403 to be the CO line driver in ADSL and other xDSL systems.The ADLD8403 is available in a 4 mm × 4 mm, 20-lead LFCSP.ApplicationsADSL/ADSL2+ CO line drivers
