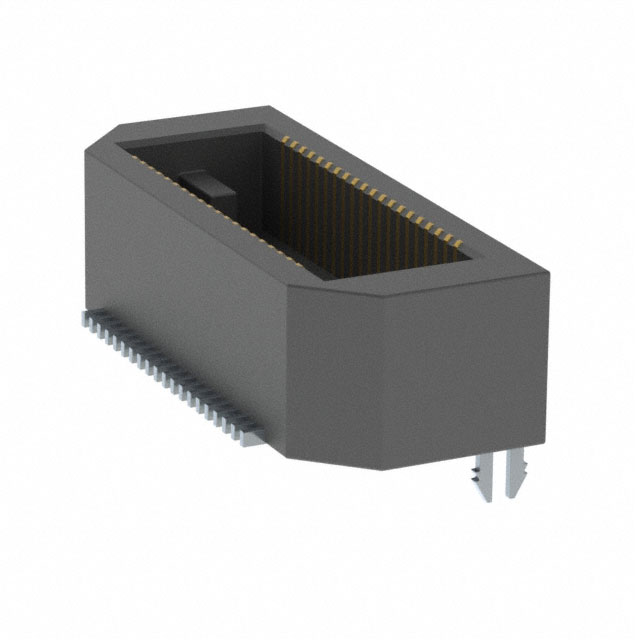

BTH-020-01-F-D-LC-K-TR

Active

Samtec Inc.

CONN HDR 40POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BTH-020-01-F-D-LC-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Mated Stacking Heights
Samtec Inc. BTH-020-01-F-D-LC-K-TR	0.5 mm	0.02 in	2	Surface Mount	Gold	3 Áin	0.076 Ám	Header Outer Shroud Contacts	40	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
