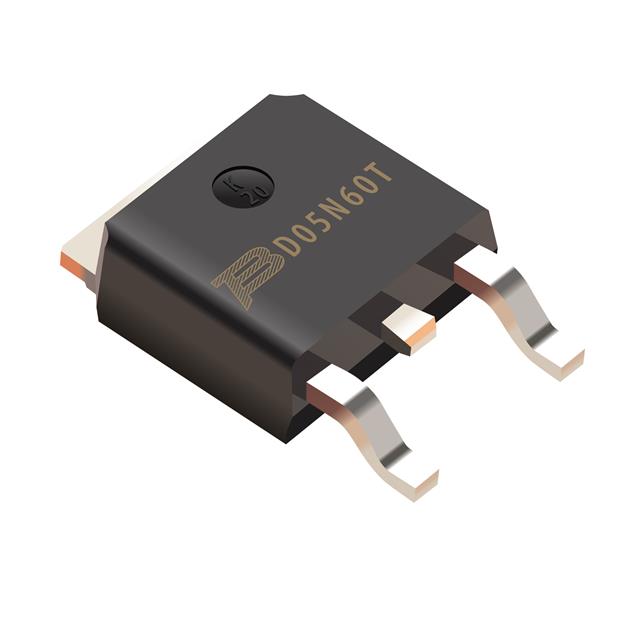

BIDD05N60T

Active

Bourns Inc.

IGBT TRENCH FS 600V 10A TO252

Search across all available documentation for this part.

Active

Bourns Inc.

IGBT TRENCH FS 600V 10A TO252

Technical Specifications

Parameters and characteristics for this part

Specification	BIDD05N60T

Current - Collector Pulsed (Icm)	15 A
Gate Charge	18.5 nC
IGBT Type	Trench Field Stop
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power - Max [Max]	82 W
Reverse Recovery Time (trr)	40 ns
Supplier Device Package	TO-252 (DPAK)
Switching Energy	70 µJ, 200 µJ
Td (on/off) @ 25°C [Max]	18 ns
Td (on/off) @ 25°C [Min]	7 ns
Test Condition [custom]	10 Ohm
Test Condition [custom]	15 V, 400 V
Test Condition [custom]	5 A
Vce(on) (Max) @ Vge, Ic	2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Current - Collector Pulsed (Icm)	Gate Charge	Reverse Recovery Time (trr)	Test Condition [custom]	Test Condition [custom]	Test Condition [custom]	Vce(on) (Max) @ Vge, Ic	IGBT Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Switching Energy	Td (on/off) @ 25°C [Max]	Td (on/off) @ 25°C [Min]	Power - Max [Max]	Mounting Type
Bourns Inc. BIDD05N60T	15 A	18.5 nC	40 ns	10 Ohm	15 V 400 V	5 A	2 V	Trench Field Stop	TO-252 (DPAK)	-55 °C	150 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	600 V	70 µJ 200 µJ	18 ns	7 ns	82 W	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT Trench Field Stop 600 V 10 A 82 W Surface Mount TO-252 (DPAK)
