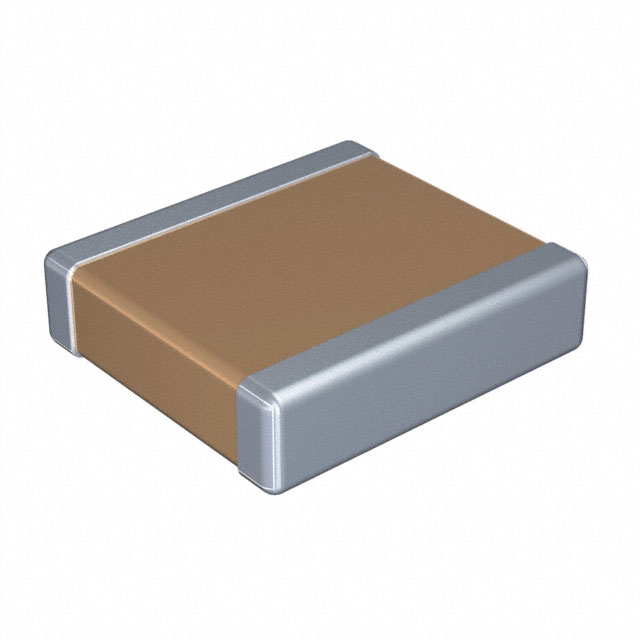

C3640C183JFGACAUTO - 3640 (9910 Metric)

C3640C183JFGACAUTO

Active
KEMET

CAP CERAMIC 0.018UF 1500V C0G 5% PAD SMD 3640 125°C T/R AUTOMOTIVE AEC-Q200

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC0G HV AUTO, 500-3K VDCDatasheet+3
C3640C183JFGACAUTO - 3640 (9910 Metric)

C3640C183JFGACAUTO

Active
KEMET

CAP CERAMIC 0.018UF 1500V C0G 5% PAD SMD 3640 125°C T/R AUTOMOTIVE AEC-Q200

Deep-Dive with AI

DocumentsC0G HV AUTO, 500-3K VDCDatasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationC3640C183JFGACAUTO
ApplicationsAutomotive
Capacitance0.018 µF
FeaturesLow ESL, High Voltage
Mounting TypeSurface Mount, MLCC
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / Case3640
Package / Case9110 Metric
RatingsAEC-Q200
Size / Dimension [x]9.1 mm
Size / Dimension [x]0.358 in
Size / Dimension [y]0.402 in
Size / Dimension [y]10.2 mm
Temperature CoefficientNP0, C0G
Thickness (Max) [Max]0.106 "
Thickness (Max) [Max]2.7 mm
Tolerance5 %
Voltage - Rated1.5 kV
Voltage - Rated1500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 12.73
10$ 11.78
50$ 10.19
100$ 9.17
Digi-Reel® 1$ 12.73
10$ 11.78
50$ 10.19
100$ 9.17
Tape & Reel (TR) 250$ 7.88
NewarkEach (Supplied on Cut Tape) 1$ 14.83
10$ 13.84
25$ 13.68
50$ 12.19
100$ 11.13
250$ 10.13

Description

General part information

C3640C Series

0.018 µF ±5% 1500V (1.5kV) Ceramic Capacitor C0G, NP0 3640 (9110 Metric)
