M52-5010345

Active

Harwin Inc.

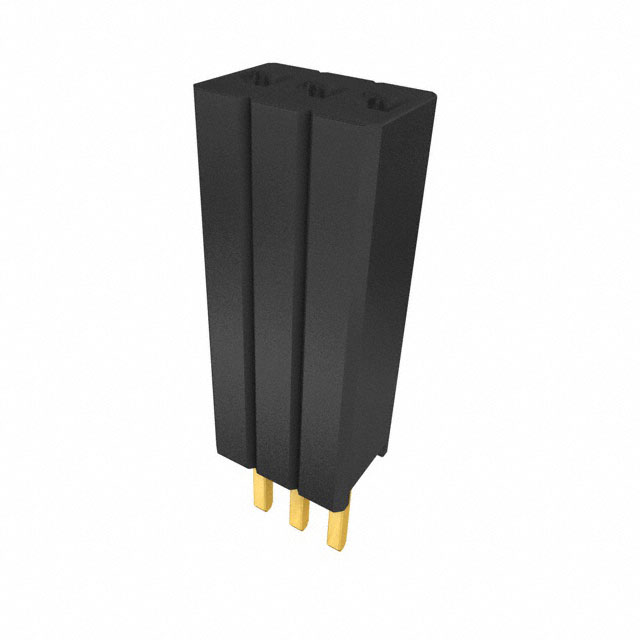

3 POS. FEMALE SIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

3 POS. FEMALE SIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M52-5010345

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Contact Type	Contact Shape	Termination	Material Flammability Rating	Number of Positions Loaded	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Fastening Type	Contact Finish - Mating	Connector Type	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Insulation Height	Insulation Material	Number of Rows	Number of Positions
Harwin Inc. M52-5010345	Through Hole	-40 °C	105 ░C	General Purpose Medical Telecommunications	Forked	Rectangular	Solder	UL94 V-0	All	Phosphor Bronze	0.05 in	1.27 mm	Black	Push-Pull	Gold	Receptacle	0.11 in	2.79 mm	0.335 "	8.51 mm	Nylon 9T Polyamide (PA9T)	1
Harwin Inc. M52-5012345	Through Hole	-40 °C	105 ░C	General Purpose Medical Telecommunications	Forked	Rectangular	Solder	UL94 V-0	All	Phosphor Bronze	0.05 in	1.27 mm	Black	Push-Pull	Gold	Receptacle	0.11 in	2.79 mm	0.335 "	8.51 mm	Nylon 9T Polyamide (PA9T)	1	23

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1029	$ 0.30
Newark	Each	1000	$ 0.30

General part information

3 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
