Technical Specifications
Parameters and characteristics for this part
| Specification | DS-111-GE1 |
|---|---|
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Illumination | Non-Illuminated |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
| Mounting Type | Chassis Mount |
| Number of Positions | 2 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 30.5 mm |
| Switch Function | On-On |
| Termination Style | Connector |
| Type | Standard |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 46.73 | |
| 5 | $ 40.15 | |||
| 10 | $ 37.59 | |||
| 25 | $ 34.45 | |||
| 50 | $ 33.29 | |||
Description
General part information

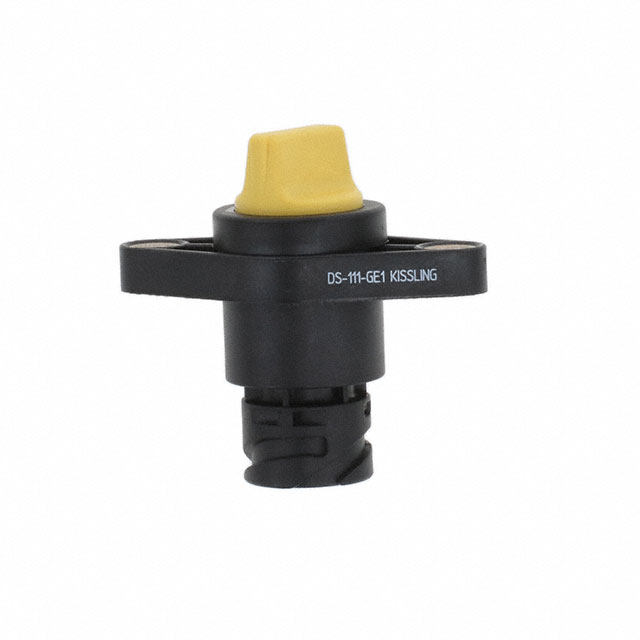

KISSLING Series DS Series
1 Position, Short Handle Selector, 1 Decks, Yellow Actuator, Selector, 1 Switch, Thermoplastic, Sealed, KISSLING Series DS, Rotary Switches
