CFTP-9

Active

Curtis Industries

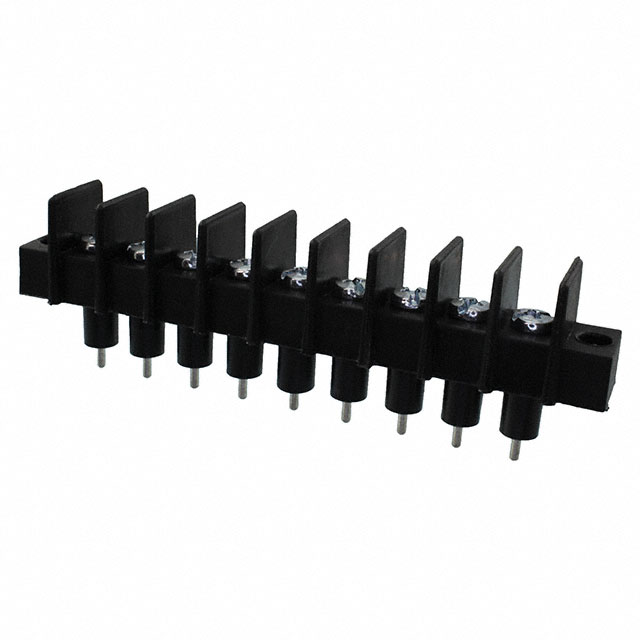

CONN BARRIER STRIP 9CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFTP-9

Active

Curtis Industries

CONN BARRIER STRIP 9CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.01
		10	$ 9.43

Description

General part information

CFT Series

9 Circuit 0.375" (9.53mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFTP-9	CFT Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin, Insulated	Solder Turret, Insulated, PC Pin, Insulated, Quick Connect, Insulated
Bottom Termination	-	0.25 "
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyester Thermoplastic	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	-	1 - 26
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	9	2 - 26
Number of Wire Entries	-	1 - 23
Operating Temperature	140 °C	140 °C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws, Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

CFT Series

CONN BARRIER STRP 26CIRC 0.375"

Part	Number of Rows	Material Flammability Rating	Current Rating (Amps)	Number of Wire Entries	Number of Circuits	Operating Temperature	Features	Material - Insulation	Terminal Screw Material	Top Termination	Pitch [x]	Pitch [x]	Mounting Type	Bottom Termination	Terminal Block Type	Barrier Type	Wire Gauge [Min]	Wire Gauge [Max]	Voltage Rating	Color	Bottom Termination [custom]
Curtis Industries CFT-26	1	UL94 V-0	20 A	26	26	140 °C	Flange	Polyester Thermoplastic	Steel	Screws	9.53 mm	0.375 in	Chassis, Panel	Solder Turret, Insulated	Barrier Block	2 Wall (Dual)	12 AWG	22 AWG	300 VDC	Black
Curtis Industries CFT-3	1	UL94 V-0	20 A	3	3	140 °C	Flange	Polyester Thermoplastic	Steel	Screws	9.53 mm	0.375 in	Chassis, Panel	Solder Turret, Insulated	Barrier Block	2 Wall (Dual)	12 AWG	22 AWG	300 VDC	Black
Curtis Industries CFTPW-7	1	UL94 V-0	20 A	7	7	140 °C	Flange	Polyester Thermoplastic		Screws with Captive Plate	9.53 mm	0.375 in	Chassis, Panel	PC Pin, Insulated	Barrier Block	2 Wall (Dual)	12 AWG	22 AWG	300 VDC	Black
Curtis Industries CFTP-3	1	UL94 V-0	20 A	3	3	140 °C	Flange	Polyester Thermoplastic	Steel	Screws	9.53 mm	0.375 in	Chassis, Panel	PC Pin, Insulated	Barrier Block	2 Wall (Dual)	12 AWG	22 AWG	300 VDC	Black
Curtis Industries CFTW-10	1	UL94 V-0	20 A	10	10	140 °C	Flange	Polyester Thermoplastic		Screws with Captive Plate	9.53 mm	0.375 in	Chassis, Panel	Solder Turret, Insulated	Barrier Block	2 Wall (Dual)	12 AWG	22 AWG	300 VDC	Black
Curtis Industries CFTQ-19	1	UL94 V-0	20 A	19	19	140 °C	Flange	Polyester Thermoplastic	Steel	Screws	9.53 mm	0.375 in	Chassis, Panel	Insulated, Quick Connect	Barrier Block	2 Wall (Dual)	12 AWG	22 AWG	300 VDC	Black	0.25 "
Curtis Industries CFTW-2	1	UL94 V-0	20 A	2	2	140 °C	Flange	Polyester Thermoplastic		Screws with Captive Plate	9.53 mm	0.375 in	Chassis, Panel	Solder Turret, Insulated	Barrier Block	2 Wall (Dual)	12 AWG	22 AWG	300 VDC	Black
Curtis Industries CFTP-9	1	UL94 V-0	20 A	9		140 °C	Flange	Polyester Thermoplastic	Steel	Screws	9.53 mm	0.375 in	Chassis, Panel	PC Pin, Insulated	Barrier Block	2 Wall (Dual)	12 AWG	22 AWG	300 VDC	Black
Curtis Industries CFTW-17	1	UL94 V-0	20 A	17	17	140 °C	Flange	Polyester Thermoplastic		Screws with Captive Plate	9.53 mm	0.375 in	Chassis, Panel	Solder Turret, Insulated	Barrier Block	2 Wall (Dual)	12 AWG	22 AWG	300 VDC	Black
Curtis Industries CFTQ-9	1	UL94 V-0	20 A	9		140 °C	Flange	Polyester Thermoplastic	Steel	Screws	9.53 mm	0.375 in	Chassis, Panel	Insulated, Quick Connect	Barrier Block	2 Wall (Dual)	12 AWG	22 AWG	300 VDC	Black	0.25 "
